632.0300.2.00 TA45

Insert

Part number 6320300200TA45

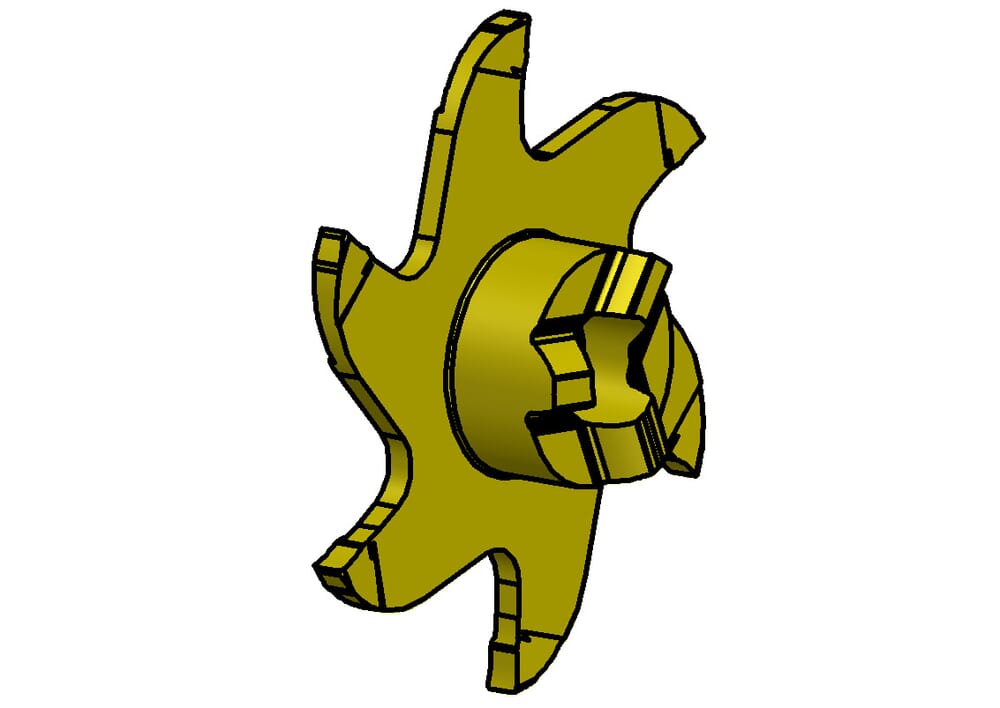

HORN Insert 632.0300.2.00 TA45 for Milling

Corner radius (r)

0.2 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

Maximum milling depth/ depth of groove (tmax)

10 mm

Width of groove (w)

3 mm

plating-seat-size

Katalog_SSC

332110R

DIN_SSC

HORN33211084R

ISO_SSC

HORN332110$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

31.7 mm
