632.L815.2.00 RC25

Part number 632L815200RC25

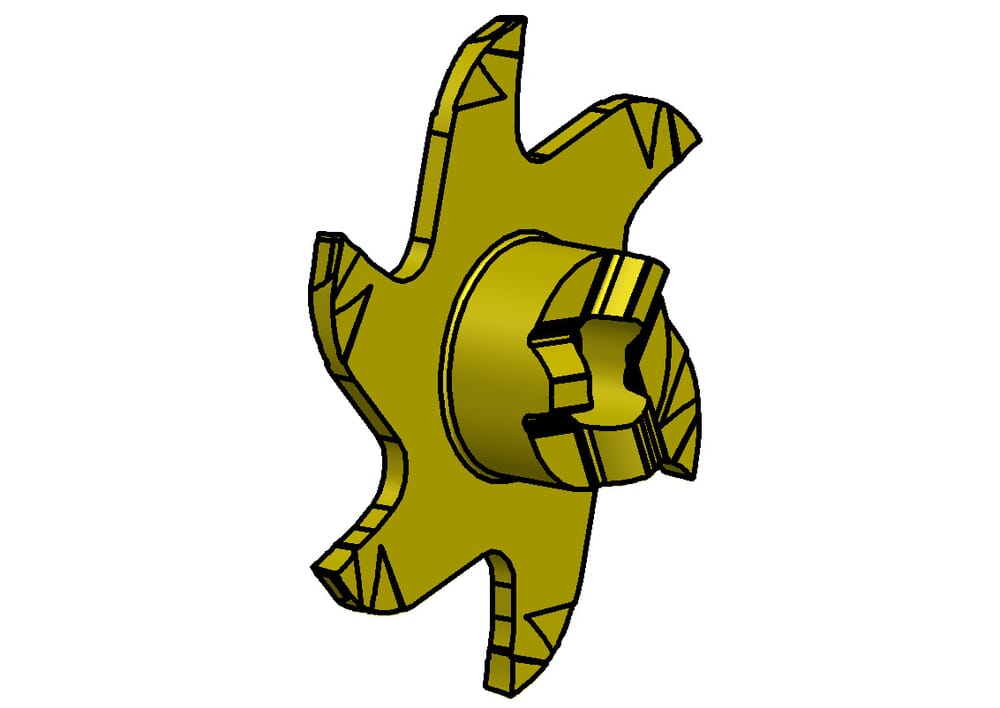

HORN 632.L815.2.00 RC25 for Milling

Cutting diameter (Ds)

31.7 mm

Number of teeth (Z)

6 St.

Parting-off chamfer (α)

8 °

eclass-shortcut

21-18-20-11

ISO_SSC

HORN332110$84R$$$$$

DIN_SSC

HORN33211084R

Katalog_SSC

332110R

Width of groove (w)

1.5 mm

Maximum milling depth/ depth of groove (tmax)

10 mm

Cutting insert thickness, setting length complete (s)

6.1 mm
