636.0150.00 TA45

Insert

Part number 636015000TA45

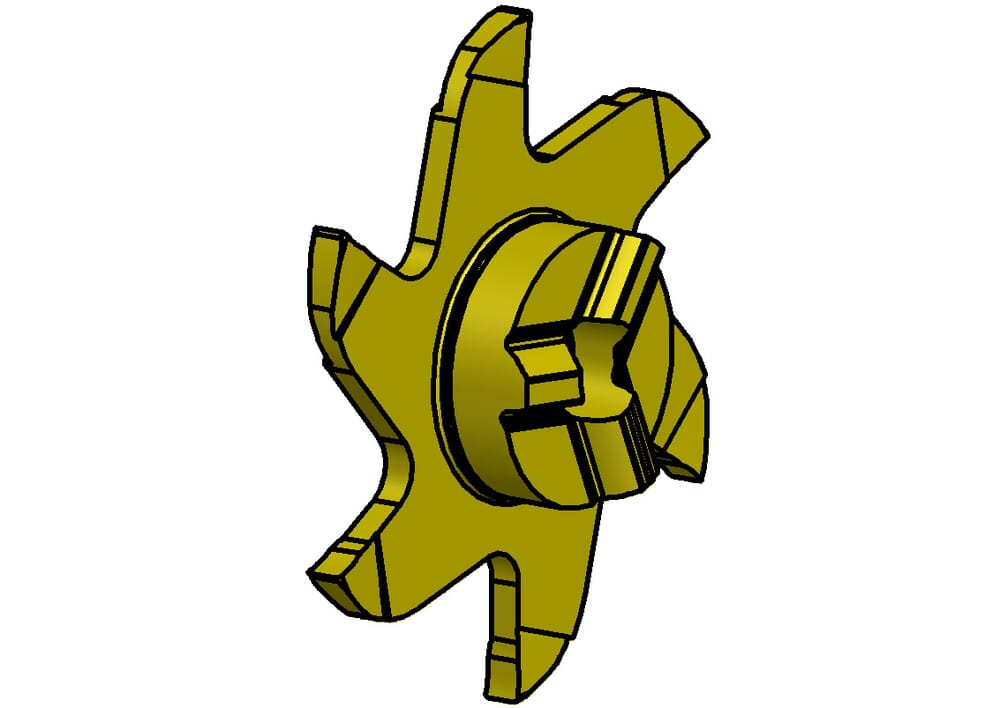

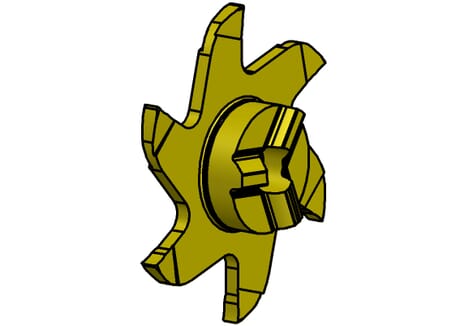

HORN Insert 636.0150.00 TA45 for Milling

Corner radius (r)

0.1 mm

Cutting insert thickness, setting length complete (s)

6.1 mm

Maximum milling depth/ depth of groove (tmax)

10.2 mm

Width of groove (w)

1.5 mm

plating-seat-size

Katalog_SSC

332143R

DIN_SSC

HORN33214384R

ISO_SSC

HORN332143$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

6 St.

Cutting diameter (Ds)

35.7 mm
