636.0200.2.00 TA45
Insert
Part number 6360200200TA45

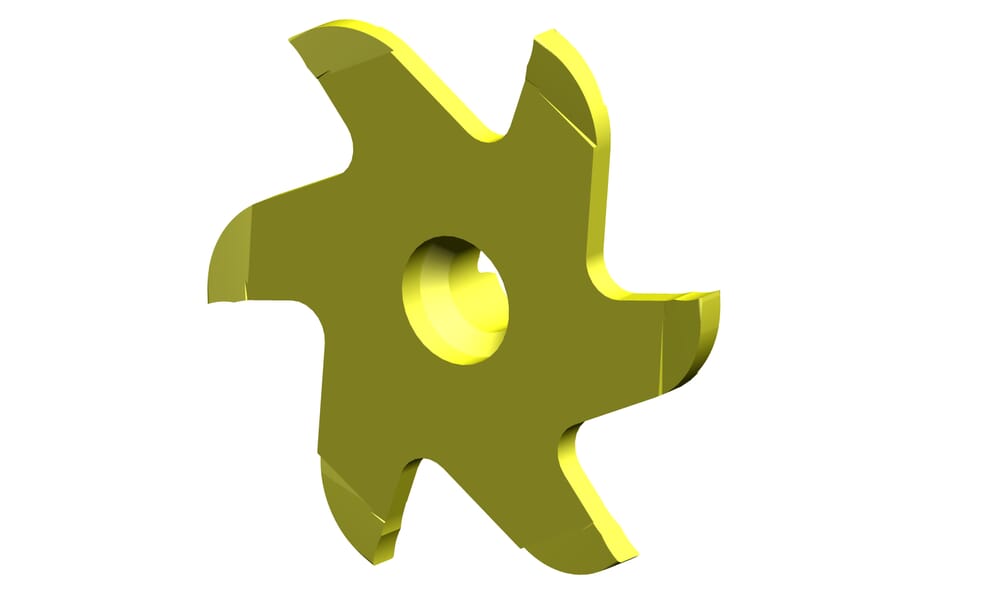

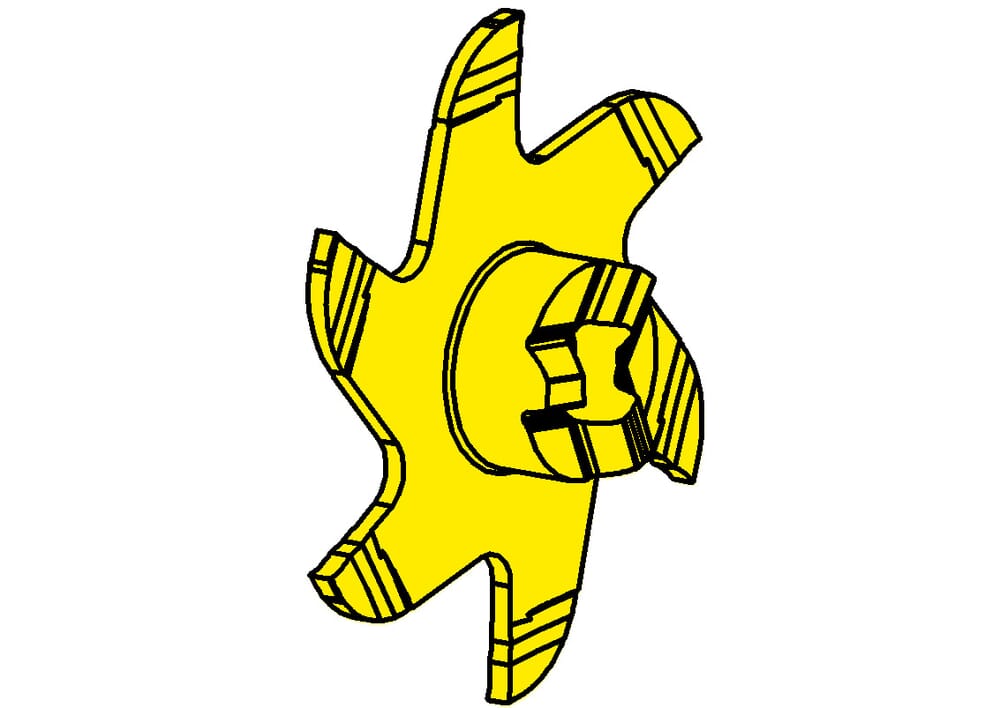

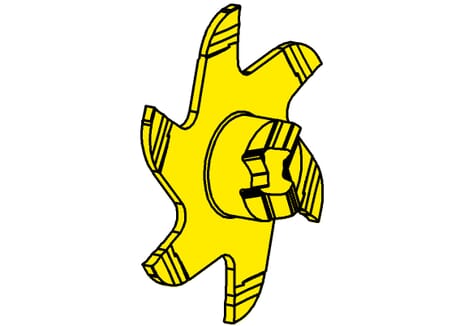

HORN Insert 636.0200.2.00 TA45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Maximum milling depth/ depth of groove (tmax)
12
mm
Width of groove (w)
2
mm
plating-seat-size
1
Katalog_SSC
332110R
DIN_SSC
HORN33211084R
ISO_SSC
HORN332110$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
35.7
mm
| Downloads | |
|---|---|
| 6360200200_20230112_144912002.STP | Download |
| 6360200200_20210629_124021108.DXF | Download |
| Download all files | |
