636.0250.2.00 AS45
Insert
Part number 6360250200AS45

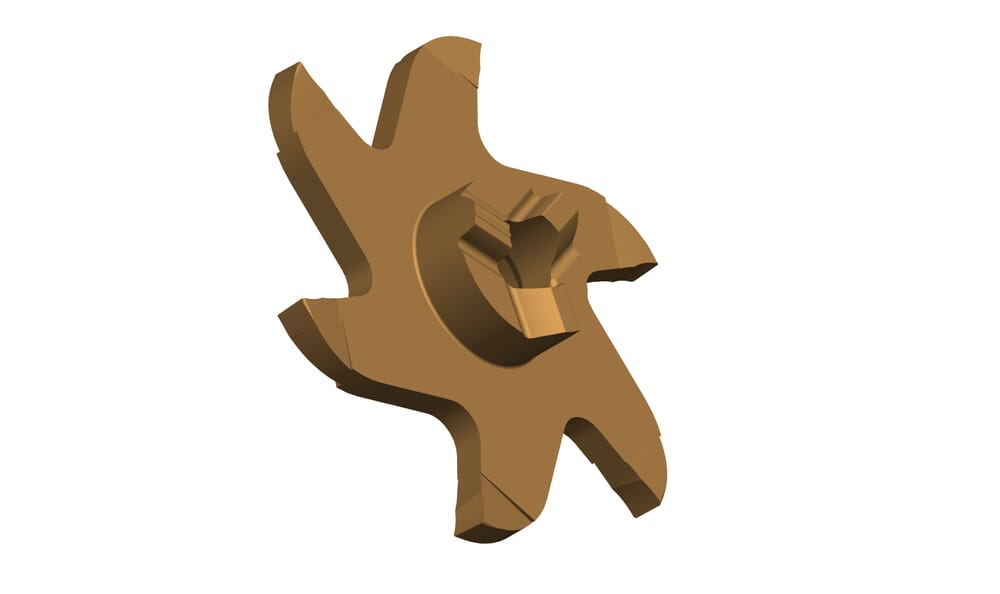

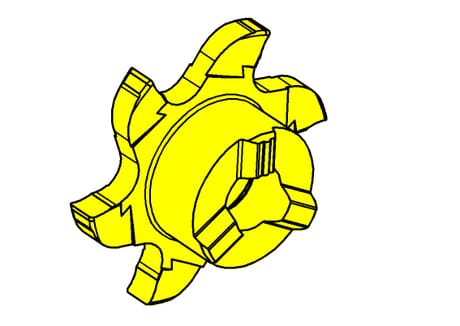

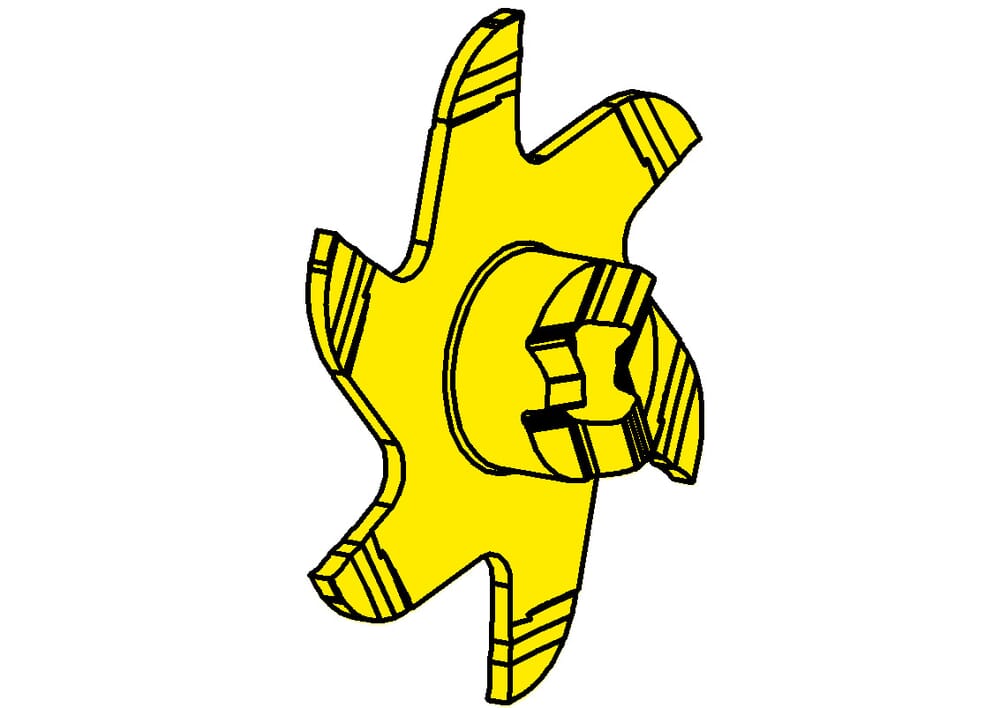

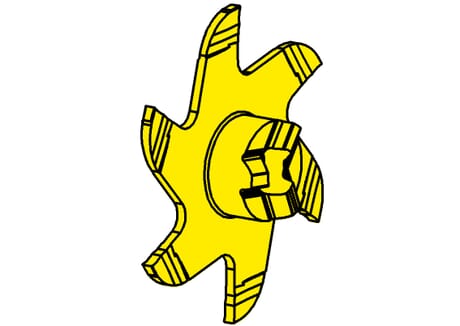

HORN Insert 636.0250.2.00 AS45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Maximum milling depth/ depth of groove (tmax)
12
mm
Width of groove (w)
2.5
mm
plating-seat-size
1
Katalog_SSC
332110R
DIN_SSC
HORN33211084R
ISO_SSC
HORN332110$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
35.7
mm
| Downloads | |
|---|---|
| 6360250200_20230112_144943810.STP | Download |
| 6360250200_20210625_161127464.DXF | Download |
| Download all files | |
