636.0300.00 AS45
Insert
Part number 636030000AS45

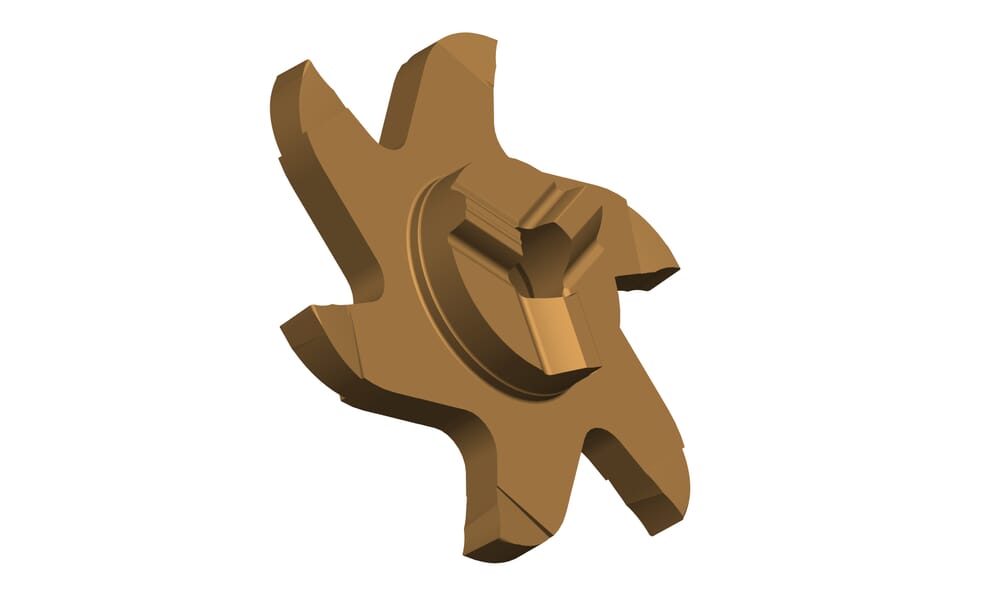

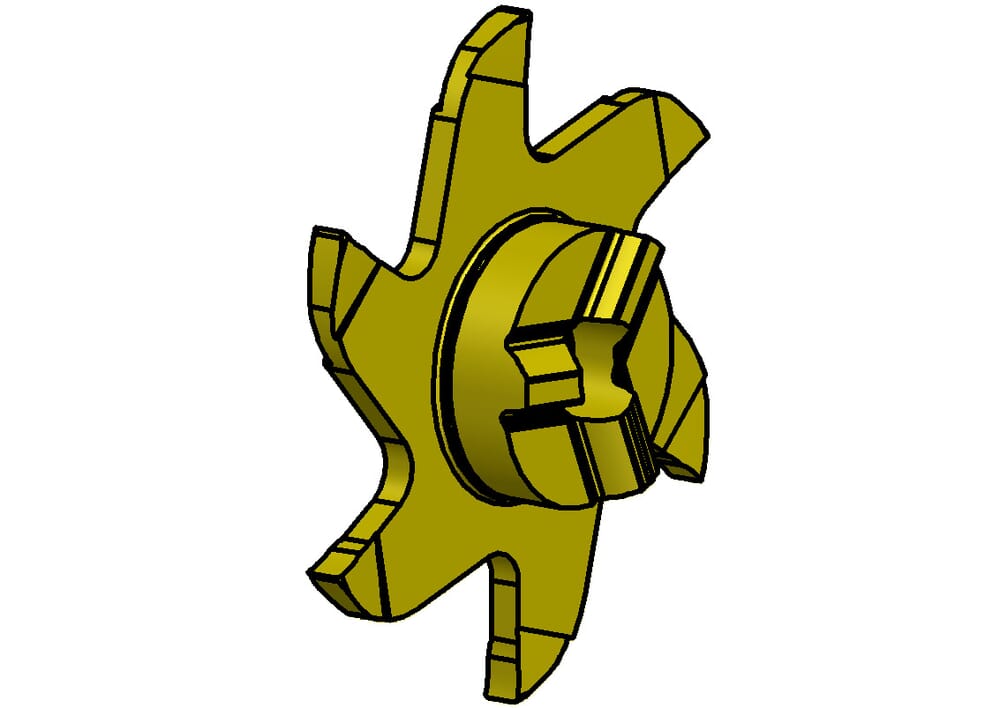

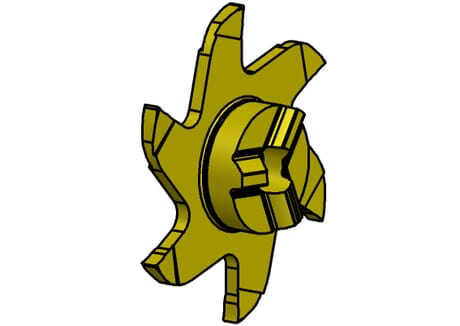

HORN Insert 636.0300.00 AS45 for Milling
Please note:Technical instructions
Corner radius (r)
0.2
mm
Cutting insert thickness, setting length complete (s)
6.1
mm
Maximum milling depth/ depth of groove (tmax)
10.2
mm
Width of groove (w)
3
mm
plating-seat-size
1
Katalog_SSC
332143R
DIN_SSC
HORN33214384R
ISO_SSC
HORN332143$84R$$$$$
eclass-shortcut
21-18-20-11
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
35.7
mm
| Downloads | |
|---|---|
| 636030000_20210630_090806618.STP | Download |
| 636030000_20211126_113807366.DXF | Download |
| Download all files | |
