713.0030.00 EG35
Insert
Part number 713003000EG35

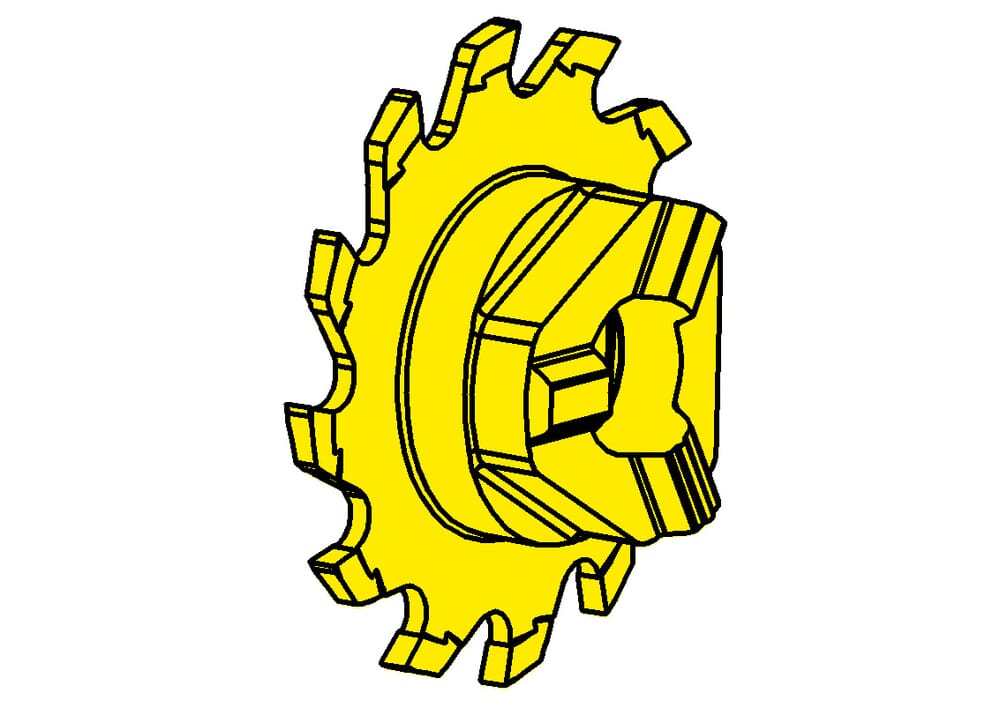

HORN Insert 713.0030.00 EG35 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
12
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
0.3
mm
Maximum milling depth/ depth of groove (tmax)
2.3
mm
Cutting insert thickness, setting length complete (s)
5.9
mm
| Downloads | |
|---|---|
| 713003000.STP | Download |
| Download all files | |
