713.0040.00 EG55

insert

Part number 713004000EG55

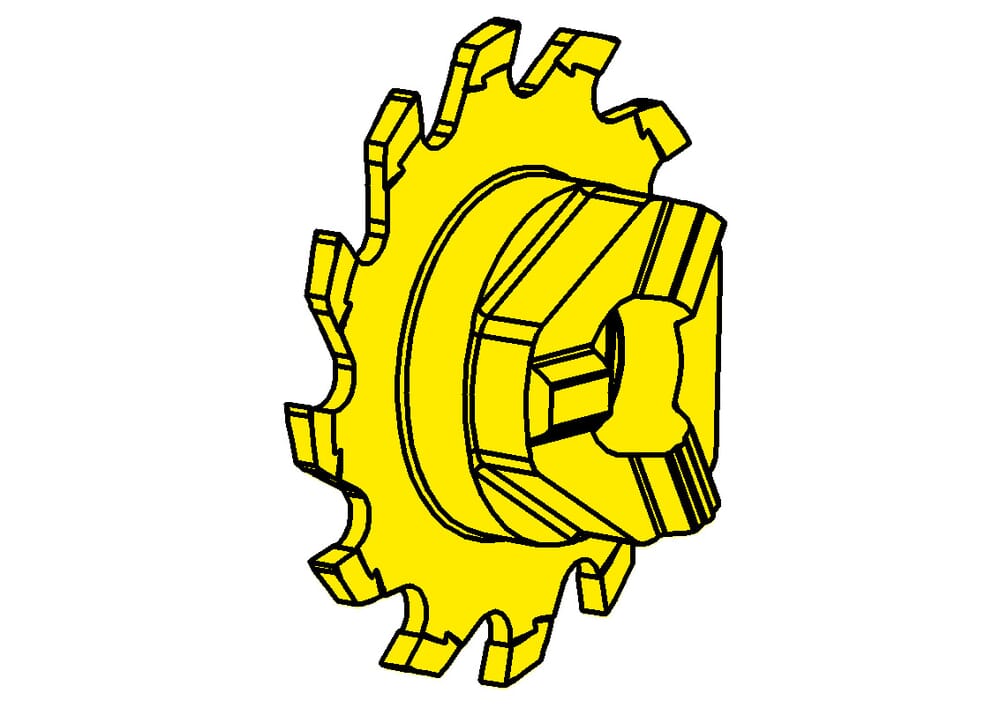

HORN insert 713.0040.00 EG55 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

12 St.

eclass-shortcut

21-18-20-11

ISO_SSC

HORN313113$84R$$$$$

DIN_SSC

HORN31311384R

Katalog_SSC

313113R

Width of groove (w)

0.4 mm

Maximum milling depth/ depth of groove (tmax)

2.3 mm

Cutting insert thickness, setting length complete (s)

5.9 mm
