713.0200.00 EG55

Insert

Part number 713020000EG55

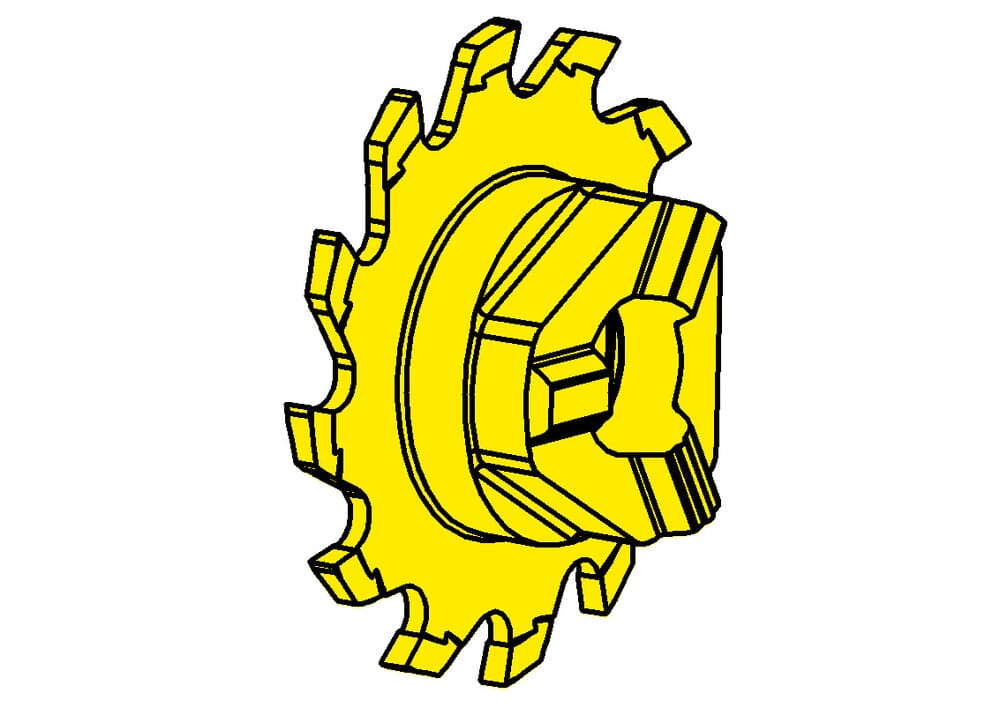

HORN Insert 713.0200.00 EG55 for Milling

Cutting diameter (Ds)

21.7 mm

Number of teeth (Z)

12 St.

ISO_SSC

HORN313113$84R$$$$$

Katalog_SSC

313113R

plating-seat-size

Width of groove (w)

2 mm

Maximum milling depth/ depth of groove (tmax)

4.5 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Corner radius (r)

0.2 mm
