713.0200.00 TI25

Insert

Part number 713020000TI25

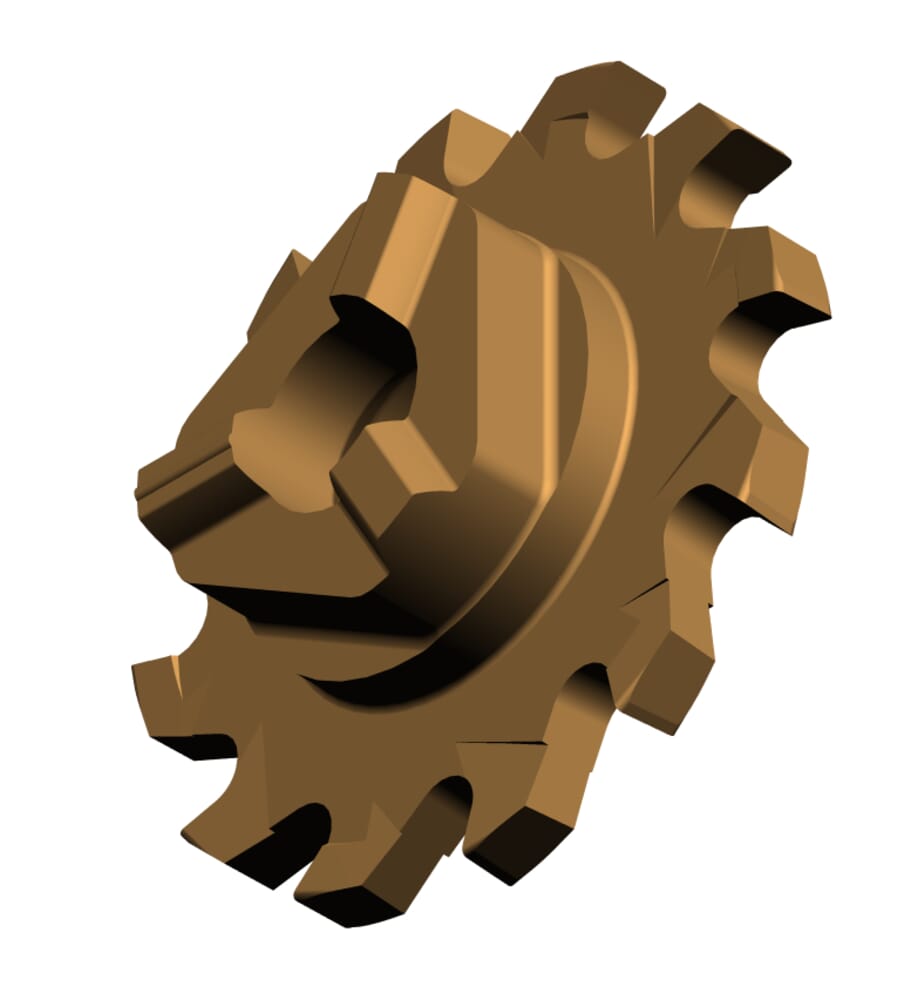

HORN Insert 713.0200.00 TI25 for Milling

Corner radius (r)

0.2 mm

Cutting insert thickness, setting length complete (s)

5.9 mm

Maximum milling depth/ depth of groove (tmax)

4.5 mm

Width of groove (w)

2 mm

plating-seat-size

Katalog_SSC

313113R

DIN_SSC

HORN31311384R

ISO_SSC

HORN313113$84R$$$$$

eclass-shortcut

21-18-20-11

Number of teeth (Z)

12 St.

Cutting diameter (Ds)

21.7 mm
