939.0007.4.14 RC45
Inserts
Part number 9390007414RC45
HORN Inserts 939.0007.4.14 RC45 for Milling
Please note:Technical instructions

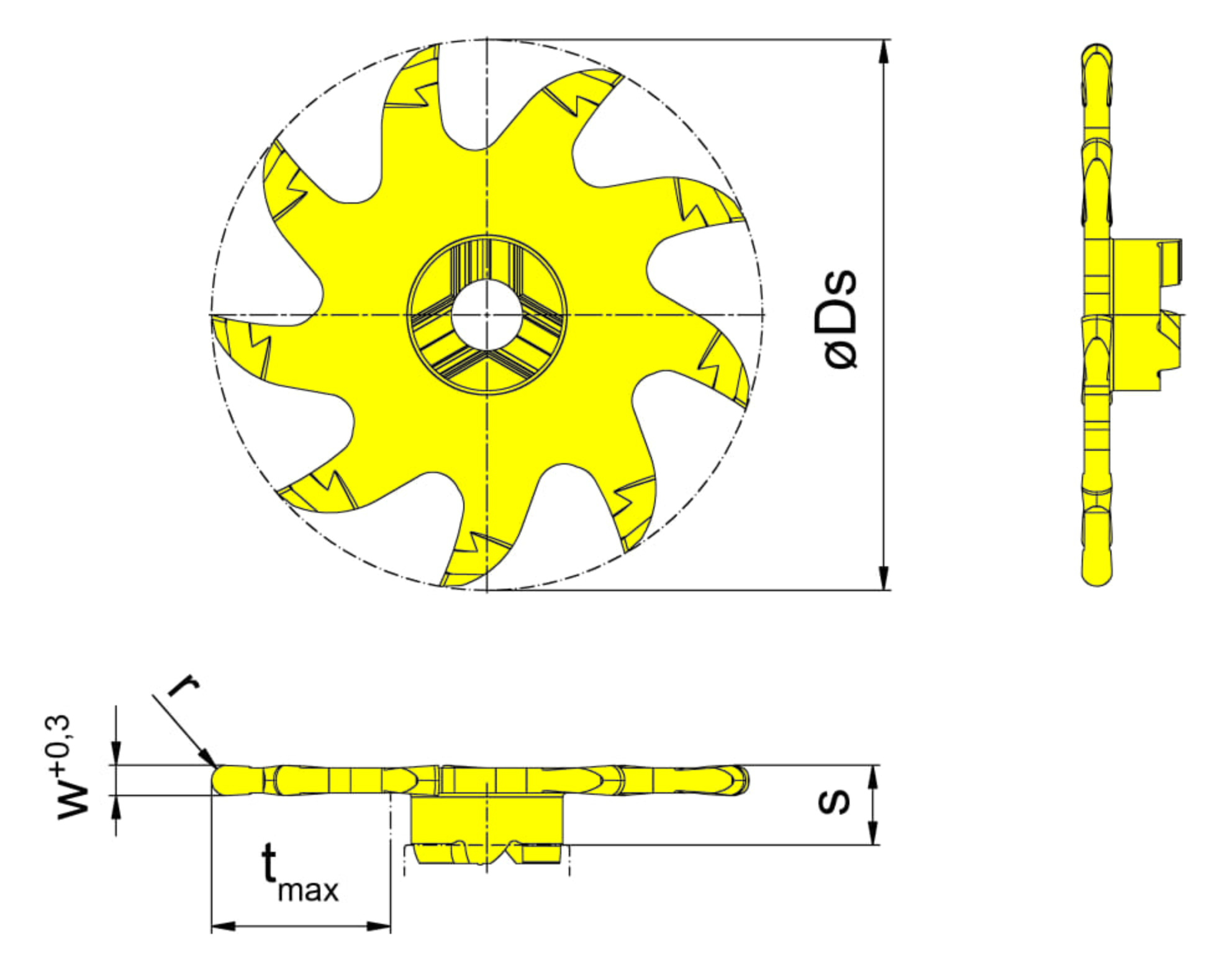

Cutting diameter (Ds)
40
mm
Number of teeth (Z)
9
St.
ISO_SSC
HORN332110$84R$$$$$
DIN_SSC
HORN33211084R
Katalog_SSC
332110R
Width of groove (w)
1.4
mm
Maximum milling depth/ depth of groove (tmax)
14
mm
Cutting insert thickness, setting length complete (s)
5.8
mm
Radius, full-radius (r)
0.7
mm
| Downloads | |
|---|---|
| 9390007414.DXF | Download |
| Download all files | |
