B13 50 50 100

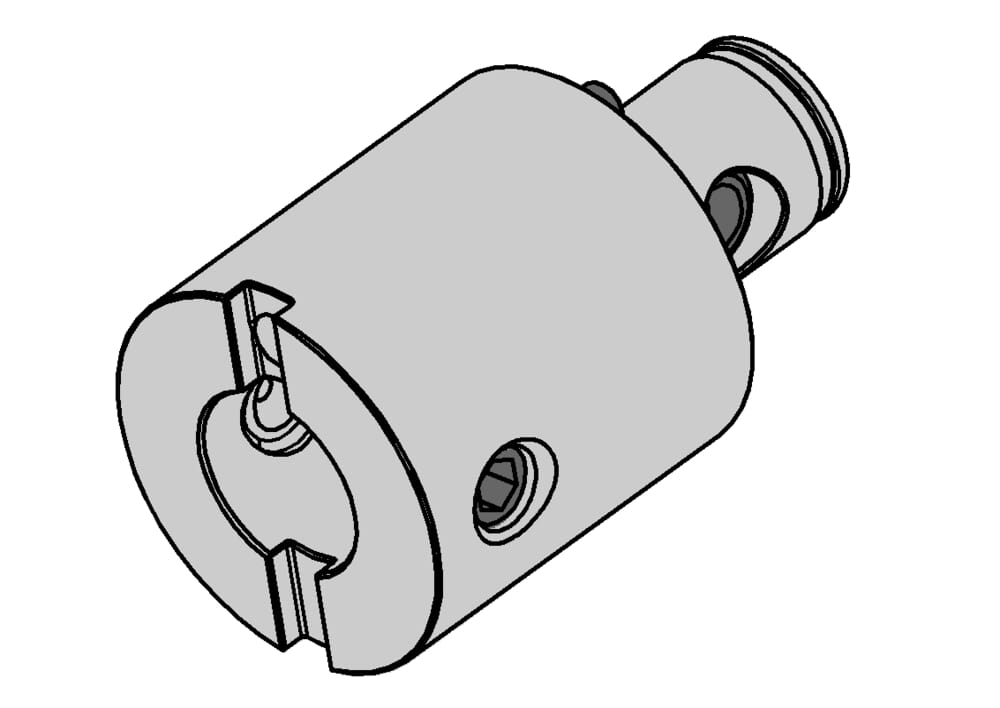

Extension BM50 L=100mm
Part number B135050100
HORN Extension BM50 L=100mm B13 50 50 100 for Milling
Please note:Technical instructions

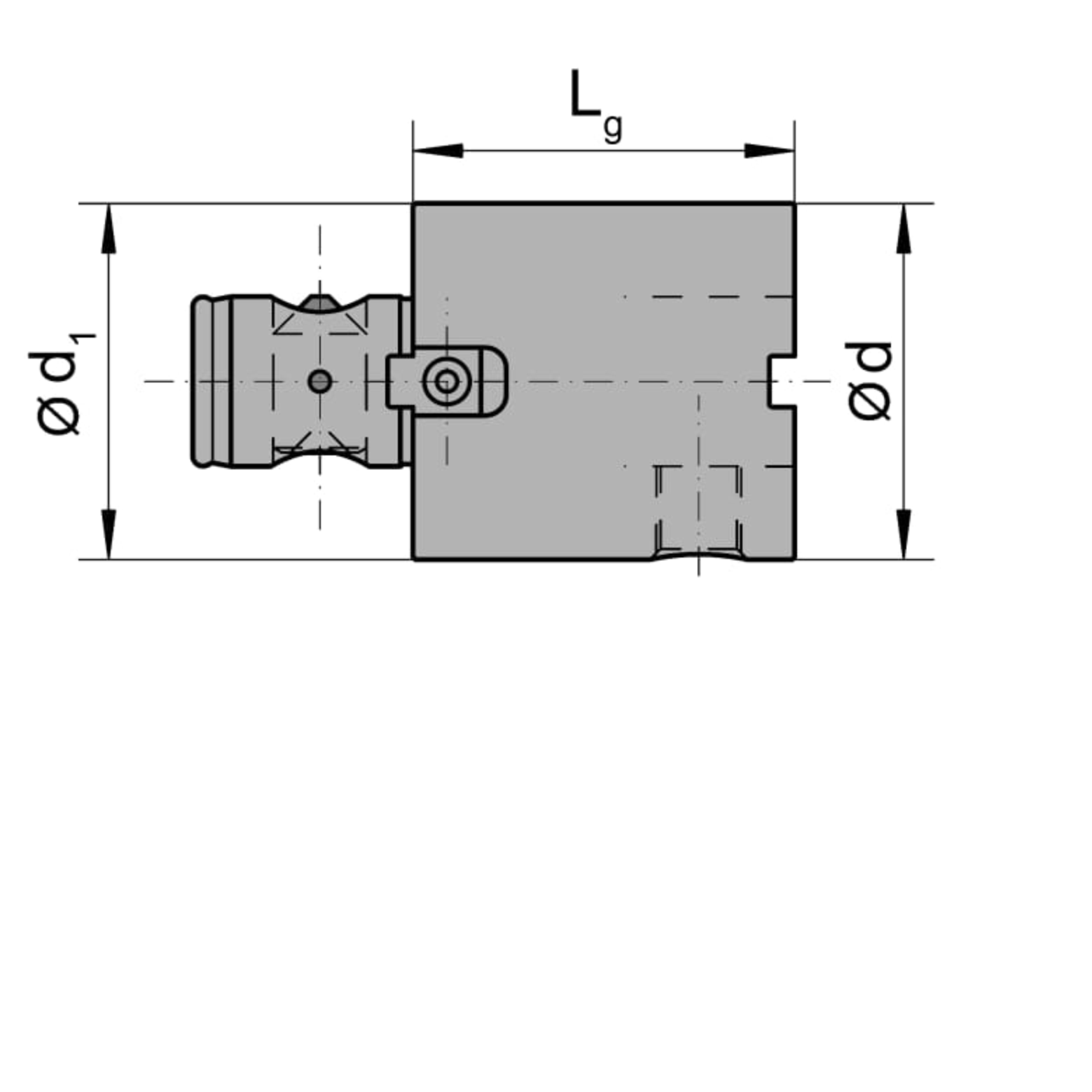

Bore diameter rotate (d1)
50
mm
Interface machine end (Beta-Modul MS)
50
mm
Interface cutting edge end (Beta-Modul WS)
50
mm
Weight [kg] (Gewicht [kg])
1.5
kg
Neck diameter (d)
50
mm
Working length (Lg)
100
mm
| Downloads | |
|---|---|
| B135050100.STP | Download |
| B135050100_20210629_114233535.DXF | Download |
| Download all files | |
