CCGT060202N.HS HD08
Insert
Part number CCGT060202NHSHD08

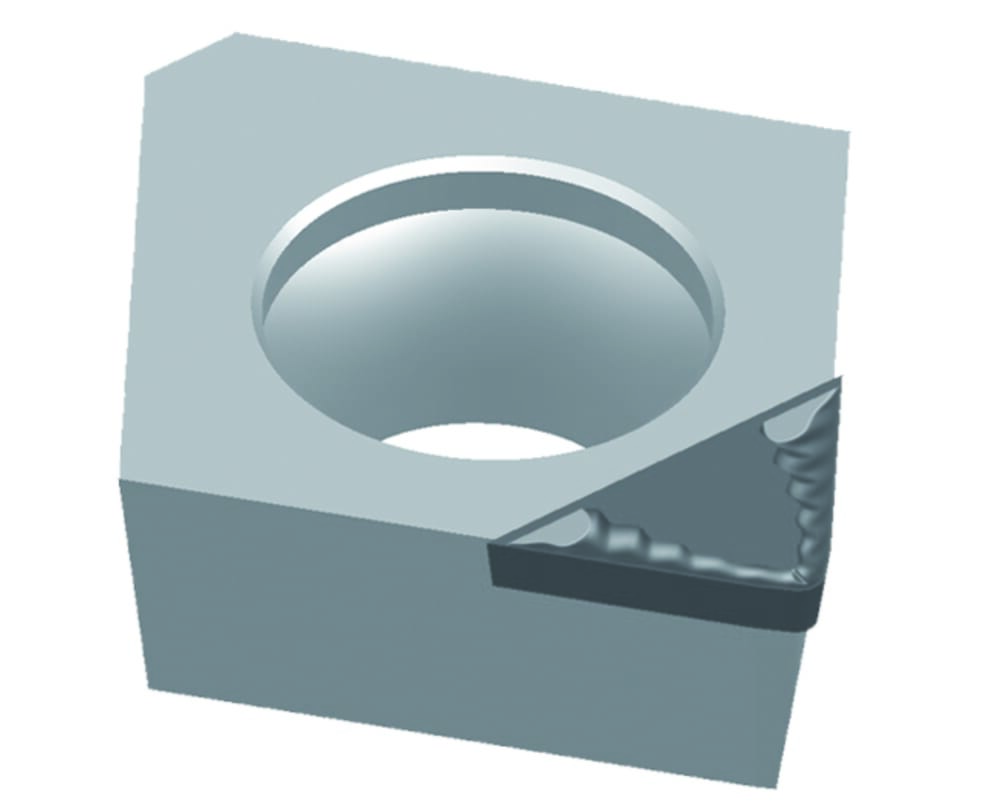

HORN Insert CCGT060202N.HS HD08 for Turning
Please note:Technical instructions
Bore diameter (d2)
2.8
mm
Free angle (α)
7
°
eclass-shortcut
21-18-20-11
ISO_SSC
ISO$CC0602023NB$$02
DIN_SSC
CC0602023N
Corner radius (r)
0.2
mm
Cutting insert height, Cutting insert thickness (s)
2.38
mm
Effective cutting length (l1)
2.5
mm
Inner circle diameter (d)
6.35
mm
| Downloads | |
|---|---|
| CCGT060202NHS_20240118_135552107.STP | Download |
| CCGT060202NHS_20210629_115238360.DXF | Download |
| Download all files | |
