CCGT120412R.G.H6 PD70
Inserts
Part number CCGT120412RGH6PD70

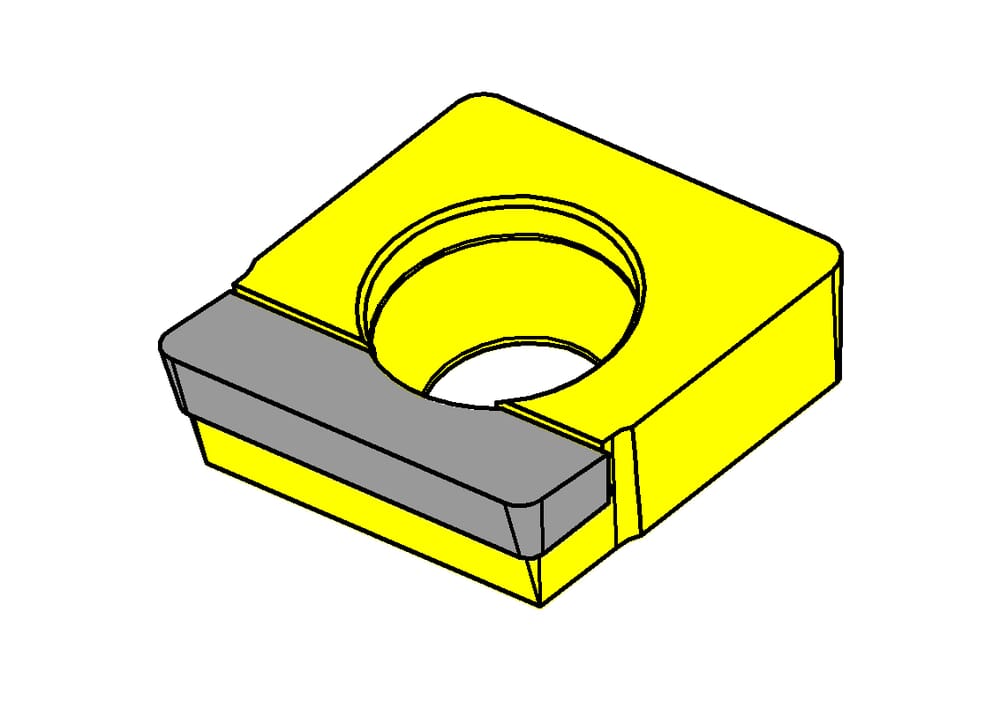

HORN Inserts CCGT120412R.G.H6 PD70 for Turning
Please note:Technical instructions

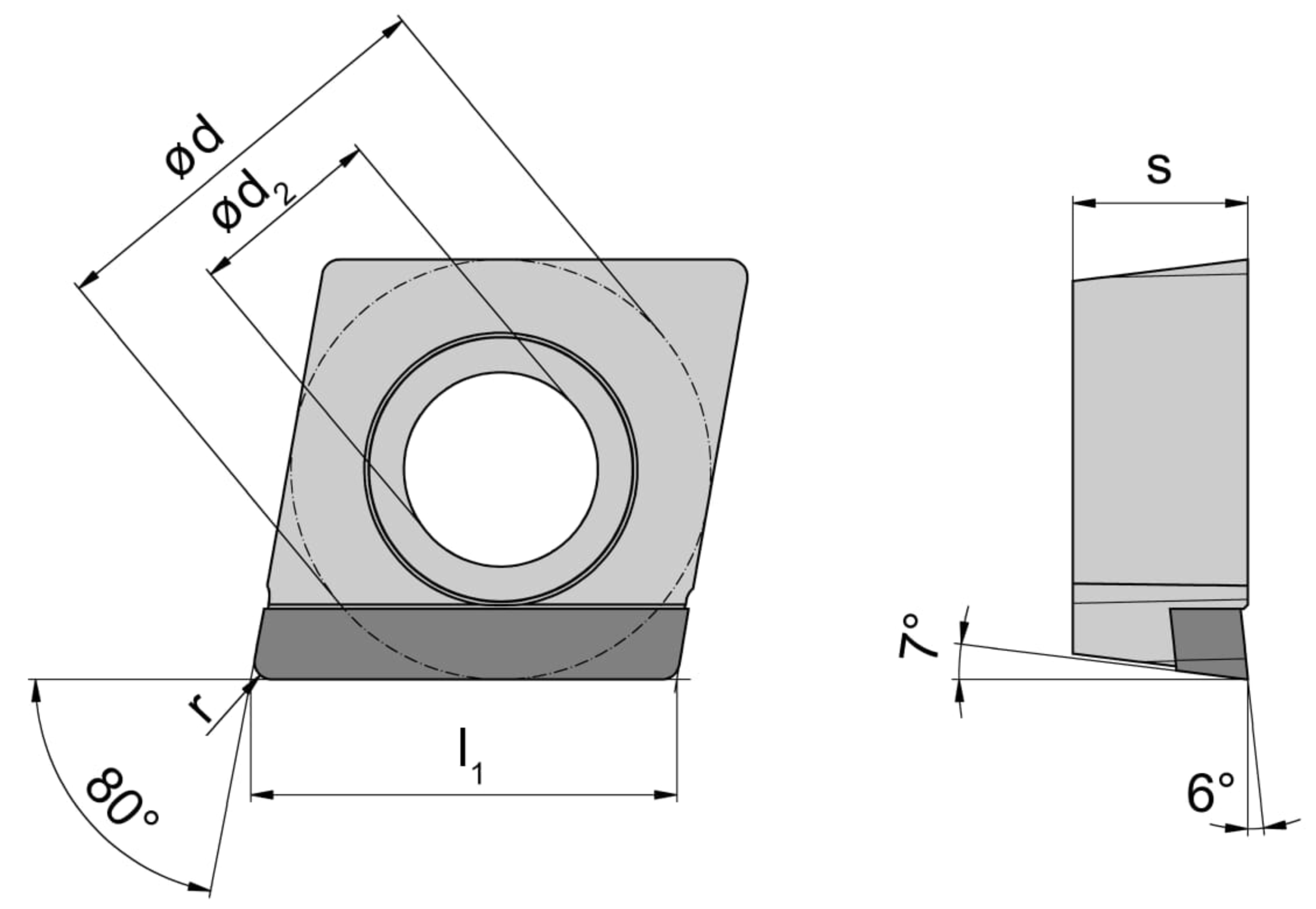

Bore diameter (d2)
5.5
mm
eclass-shortcut
21-18-20-11
ISO_SSC
ISO$CC1204123RB$$12
DIN_SSC
CC1204123R
Corner radius (r)
1.2
mm
Cutting insert height, Cutting insert thickness (s)
4.76
mm
Effective cutting length (l1)
12.6
mm
Inner circle diameter (d)
12.7
mm
