CCGW120404N.W.H0 PD70
Inserts
Part number CCGW120404NWH0PD70

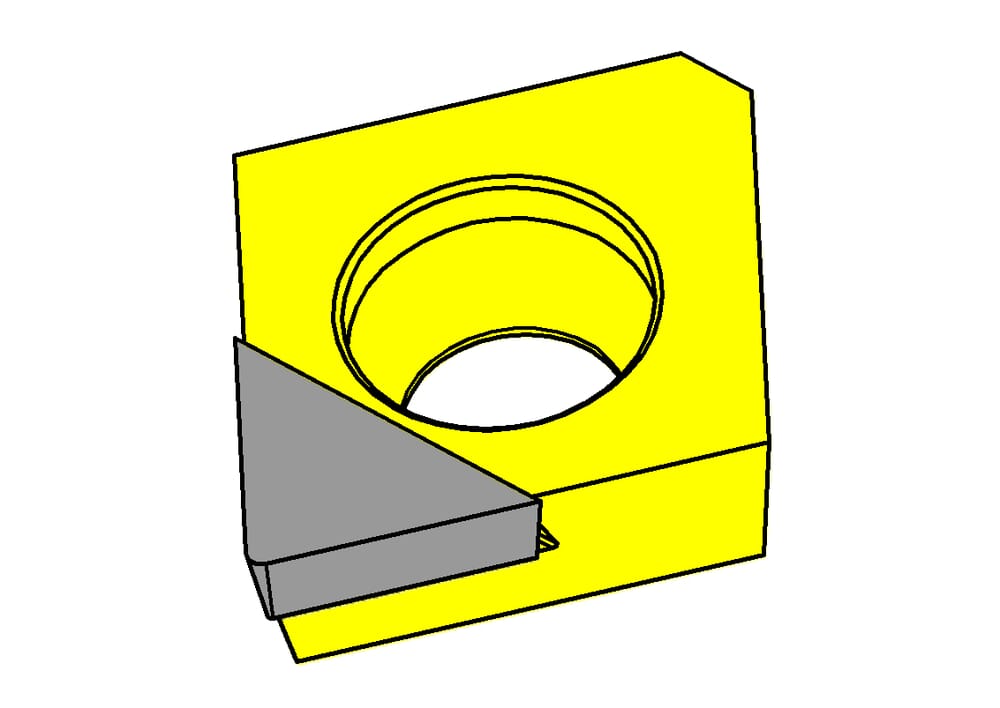

HORN Inserts CCGW120404N.W.H0 PD70 for Turning
Please note:Technical instructions

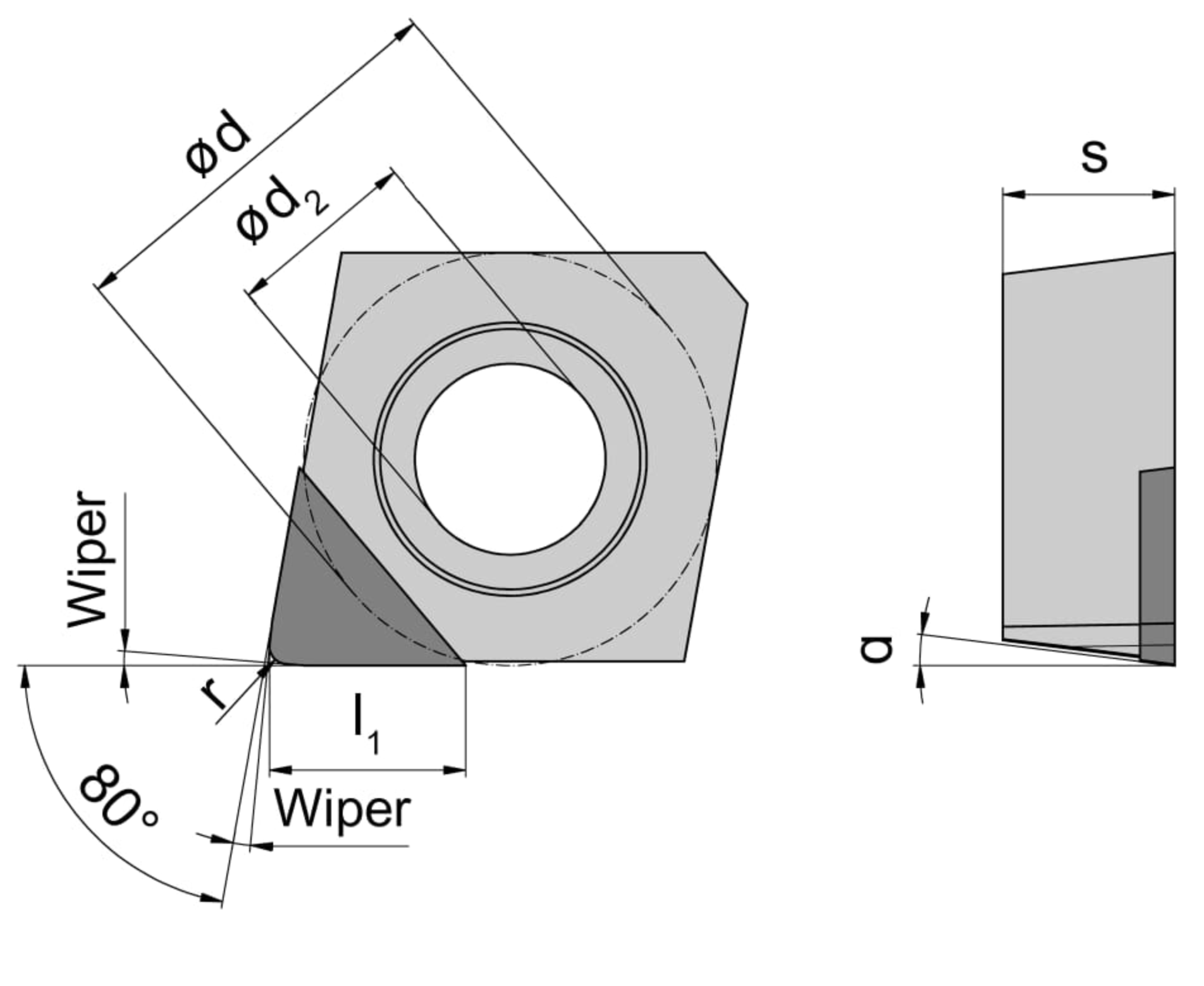

Bore diameter (d2)
5.5
mm
Free angle (α)
7
°
eclass-shortcut
21-18-20-11
ISO_SSC
ISO$CC1204043NB$$04
DIN_SSC
CC1204043N
Corner radius (r)
0.4
mm
Cutting insert height, Cutting insert thickness (s)
4.76
mm
Effective cutting length (l1)
4
mm
Inner circle diameter (d)
12.7
mm
