CNGA120404.TN5A CB60
Insert
Part number CNGA120404TN5ACB60

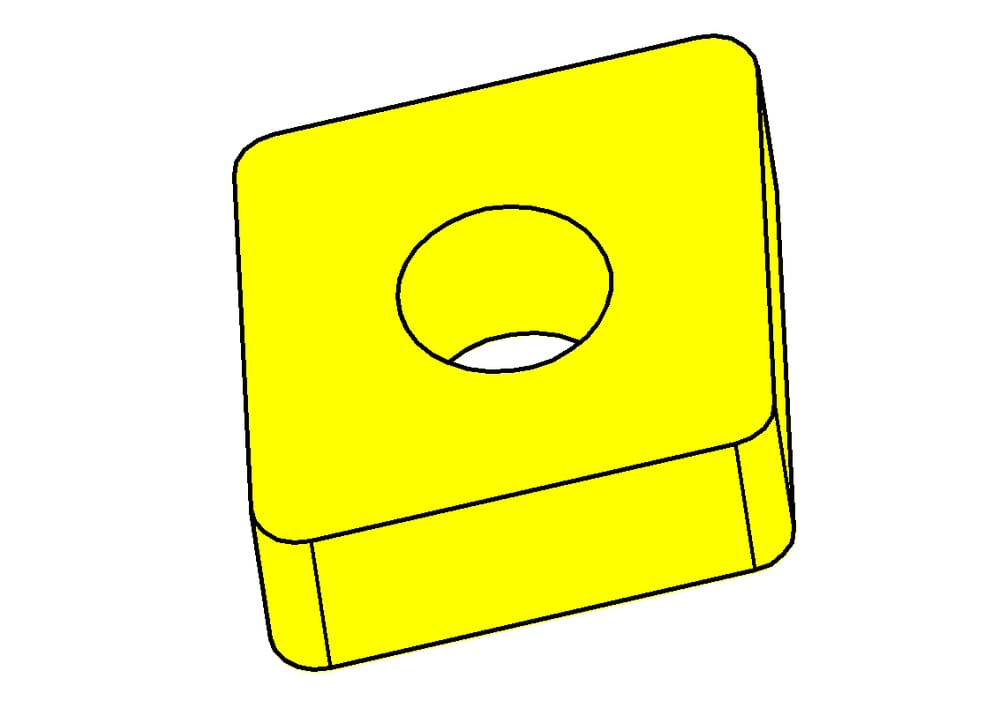

HORN Insert CNGA120404.TN5A CB60 for Turning
Please note:Technical instructions

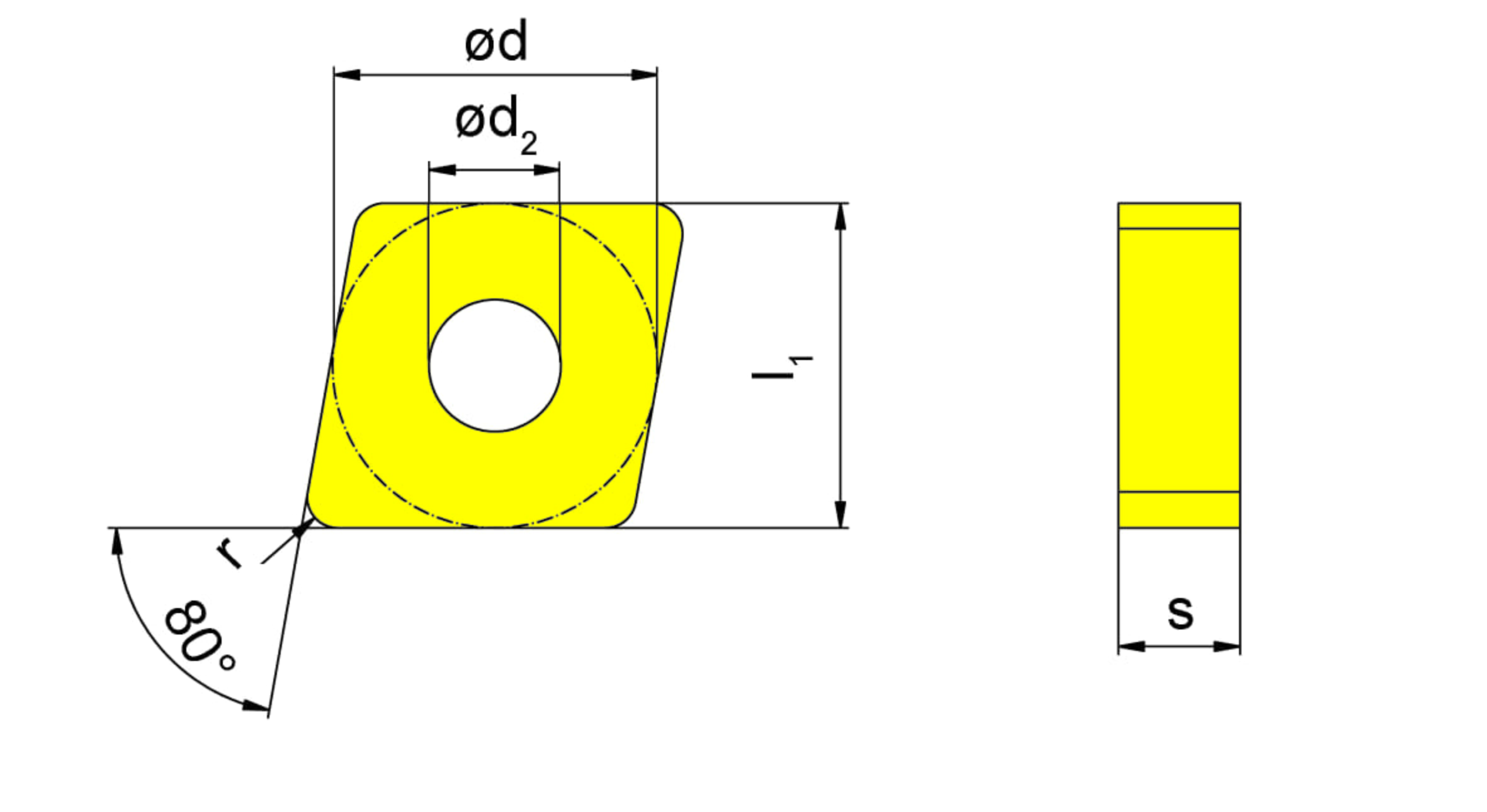

Bore diameter (d2)
5.16
mm
Corner radius (r)
0.4
mm
Cutting insert height, Cutting insert thickness (s)
4.76
mm
Effective cutting length (l1)
12.9
mm
Inner circle diameter (d)
12.7
mm
| Downloads | |
|---|---|
| CNGA120404.STP | Download |
| CNGA120404_20240205_180404431.DXF | Download |
| Download all files | |
