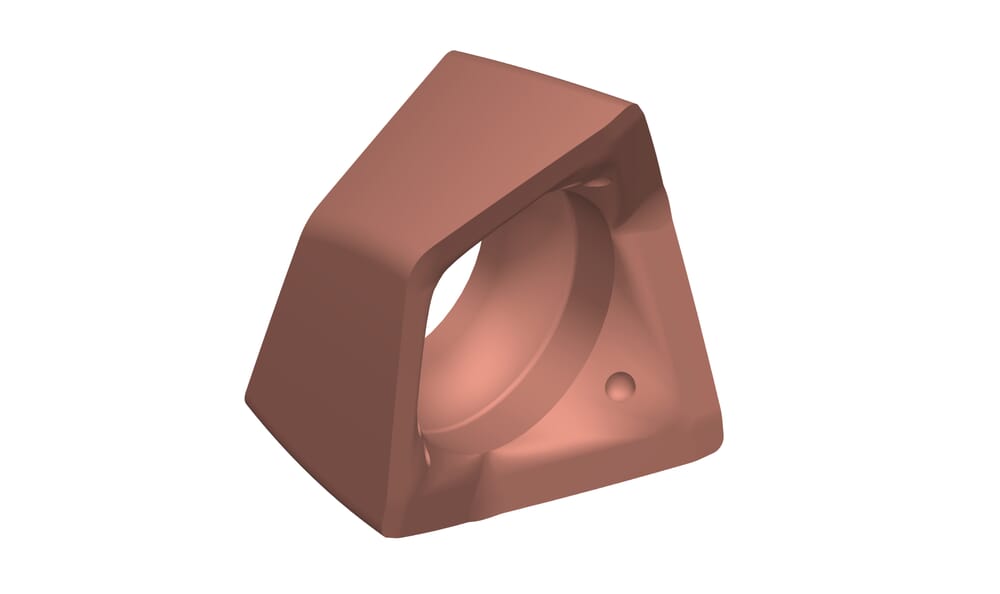

DA31.025.A.02 TA45
DA Milling cutter
Part number DA31025A02TA45
HORN DA Milling cutter DA31.025.A.02 TA45 for Milling
Please note:Technical instructions
cutting-edge-diameter-met
25 mm
ISO_SSC
HORNDA3125$$3N$$$$$
Katalog_SSC
DA3125
Width of groove (a)
3 mm
Corner radius (rx)
0.2 mm
Maximum stepover axial (ap) (ap)
3 mm
Cutting insert height, Cutting insert thickness (h)
3.1 mm
For cutting diameter (Ds)
25 mm
eclass-shortcut
21-18-20-07
| Downloads | |
|---|---|
| DA31_025_A_02_TA45-ISO.XML | Download |
| DA31_025_A_02_TA45-DXF.DXF | Download |
| DA31_025_A_02_TA45-STP.STP | Download |
| DA31_025_A_02_TA45-DIN.XML | Download |
| Download all files | |
