DAHM.37.025.D255.03B

Toolholder

Part number DAHM37025D25503B

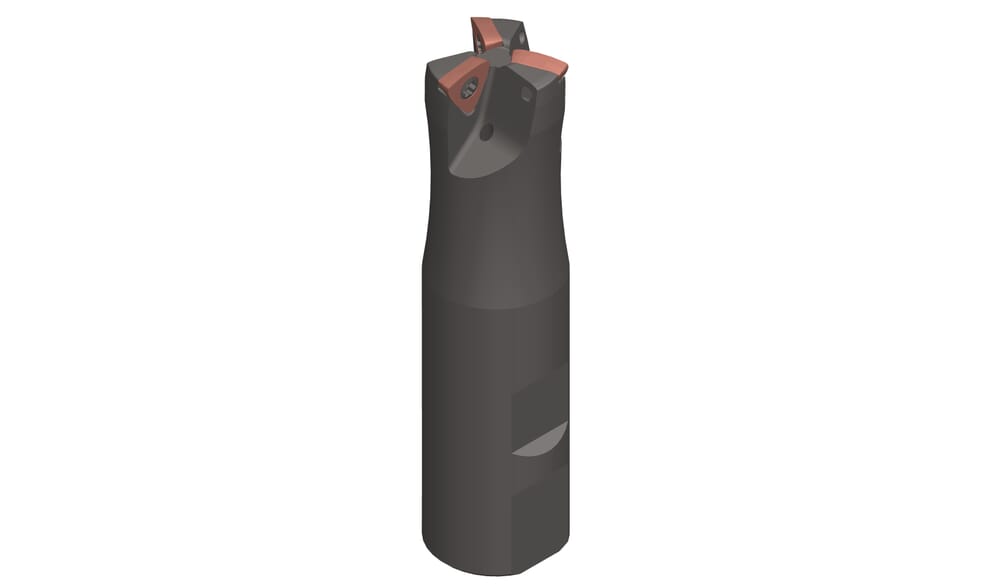

HORN Toolholder DAHM.37.025.D255.03B for Milling

ISO_CCTWS

HORNDAH37$$$3N$$$$$

Tension length (l3)

56 mm

Working length, Neck length, Extension length (l2)

41 mm

Total length insert (l1)

101 mm

cone-diameter-met

25 mm

Neck diameter (d1)

24 mm

Cutting depth (ap)

1.2 mm

ISO_CCTMS

ZYL10G2500h$06

DIN_CCTMS

ZYL02501005

Katalog_CCTWS

DAH37

DIN_CCTWS

HORN-DAH373N

eclass-shortcut

21-18-08-90

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

25 mm

Shank diameter (d)

25 mm
