DAHM.37.025.M125.03
Toolholder
Part number DAHM37025M12503

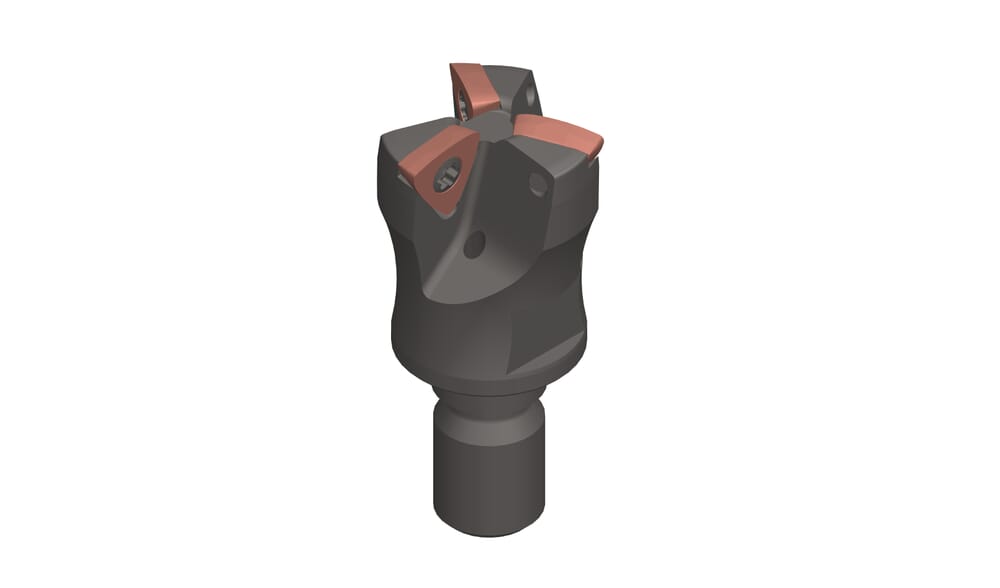

HORN Toolholder DAHM.37.025.M125.03 for Milling
Please note:Technical instructions
ISO_CCTWS
HORNDAH37$$$3N$$$$$
Maximum stepover (ap) (ap)
1.2
mm
Key range (SW)
17
mm
Neck diameter on stop (d4)
21
mm
Length from stop (l2)
30
mm
Total milling length with insert (l1)
52
mm
Katalog_CCTMS
12001
ISO_CCTMS
HORN01200105$$
DIN_CCTMS
HORN-01200105
Katalog_CCTWS
DAH37
DIN_CCTWS
HORN-DAH373N
Diameter miller body (d1)
24
mm
eclass-shortcut
21-18-08-90
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
25
mm
Screw thread (d2)
M12
| Downloads | |
|---|---|
| DAHM_37_025_M125_03.STP | Download |
| DAHM37025M12503_20210629_120636035.DXF | Download |
| Download all files | |
