DAHM.37.032.D326.04B
Toolholder
Part number DAHM37032D32604B

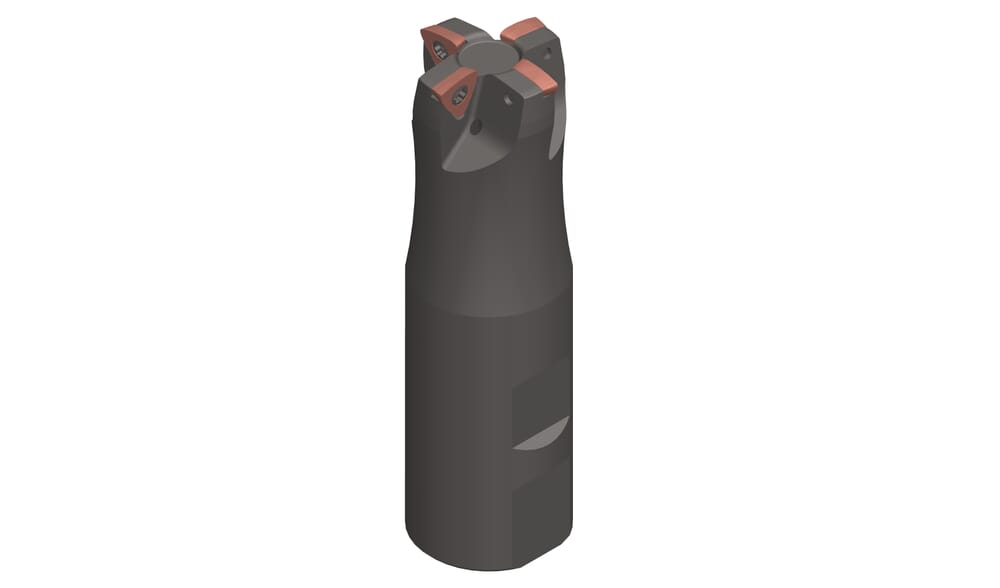

HORN Toolholder DAHM.37.032.D326.04B for Milling
Please note:Technical instructions
ISO_CCTWS
HORNDAH37$$$3N$$$$$
Tension length (l3)
60
mm
Working length, Neck length, Extension length (l2)
47
mm
Total length insert (l1)
111
mm
cone-diameter-met
32
mm
Neck diameter (d1)
31
mm
Cutting depth (ap)
1.2
mm
ISO_CCTMS
ZYL10G3200h$06
DIN_CCTMS
ZYL03201005
Katalog_CCTWS
DAH37
DIN_CCTWS
HORN-DAH373N
eclass-shortcut
21-18-08-90
Number of teeth (Z)
4
St.
Cutting diameter (Ds)
32
mm
Shank diameter (d)
32
mm
| Downloads | |
|---|---|
| DAHM_37_032_D326_04B.STP | Download |
| DAHM37032D32604B_20210629_061953729.DXF | Download |
| Download all files | |
