DAHM.37.032.M166.04
Toolholder
Part number DAHM37032M16604

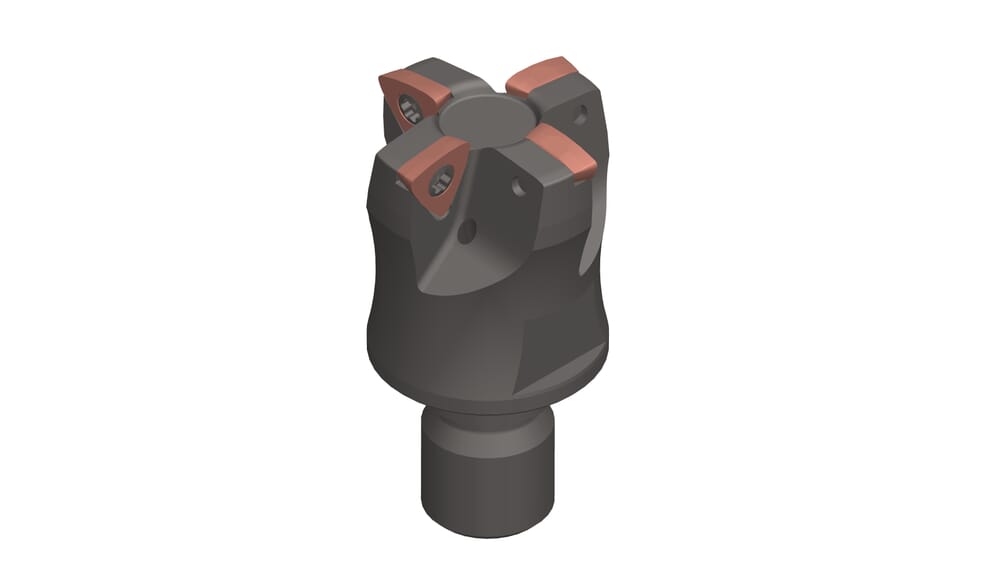

HORN Toolholder DAHM.37.032.M166.04 for Milling
Please note:Technical instructions
ISO_CCTWS
HORNDAH37$$$3N$$$$$
Maximum stepover (ap) (ap)
1.2
mm
Key range (SW)
24
mm
Neck diameter on stop (d4)
29
mm
Length from stop (l2)
35
mm
Total milling length with insert (l1)
58
mm
Katalog_CCTMS
16001
ISO_CCTMS
HORN01600105$$
DIN_CCTMS
HORN-01600105
Katalog_CCTWS
DAH37
DIN_CCTWS
HORN-DAH373N
Diameter miller body (d1)
31
mm
eclass-shortcut
21-18-08-90
Number of teeth (Z)
4
St.
Cutting diameter (Ds)
32
mm
Screw thread (d2)
M16
| Downloads | |
|---|---|
| DAHM_37_032_M166_04.STP | Download |
| DAHM37032M16604_20210629_120645222.DXF | Download |
| Download all files | |
