DAM32.020.D160.02A
Toolholder
Part number DAM32020D16002A

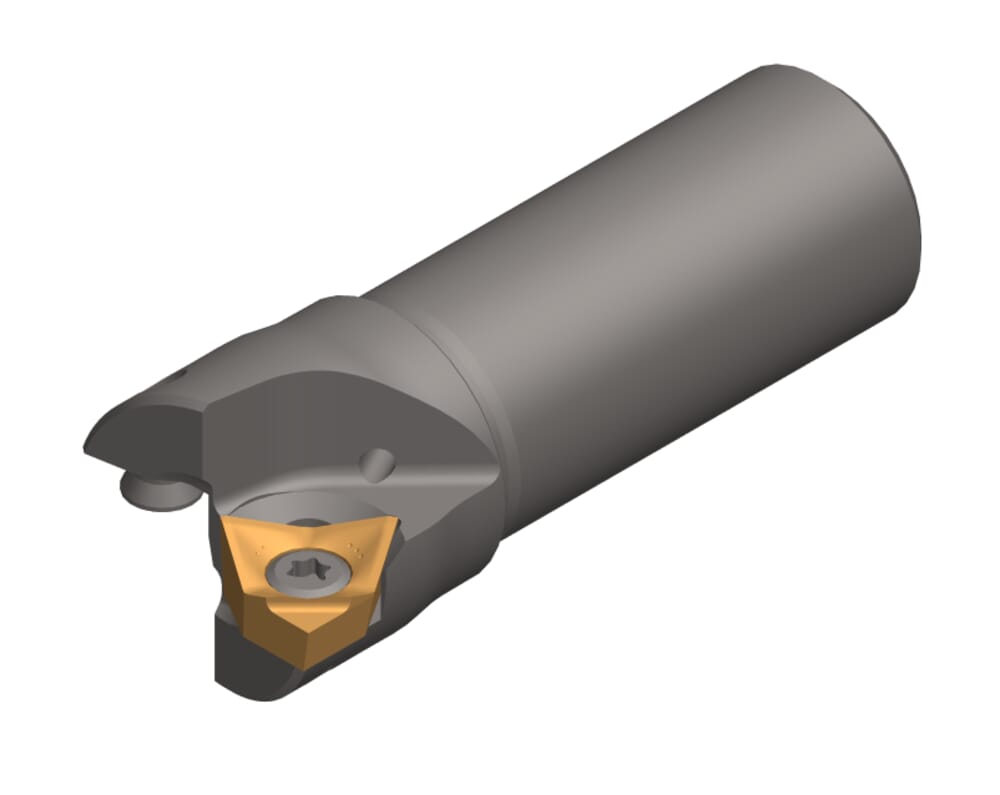

HORN Toolholder DAM32.020.D160.02A for Milling
Please note:Technical instructions
ISO_CCTWS
HORNDA3220$$3N$$$$$
Tension length (l3)
35
mm
Working length, Neck length, Extension length (l2)
17
mm
Total length insert (l1)
52
mm
cone-diameter-met
19
mm
Neck diameter (d1)
16
mm
Cutting depth (ap)
4.5
mm
ISO_CCTMS
ZYL01G2000h$06
DIN_CCTMS
ZYL02000105
Katalog_CCTWS
DA3220
DIN_CCTWS
HORN-DA32203N
eclass-shortcut
21-18-08-90
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
20
mm
Shank diameter (d)
19
mm
| Downloads | |
|---|---|
| DAM32020D16002A_20240118_124941641.STP | Download |
| DAM32020D16002A_20240205_225448894.DXF | Download |
| Download all files | |
