DAM32.020.D205.02B
Toolholder
Part number DAM32020D20502B

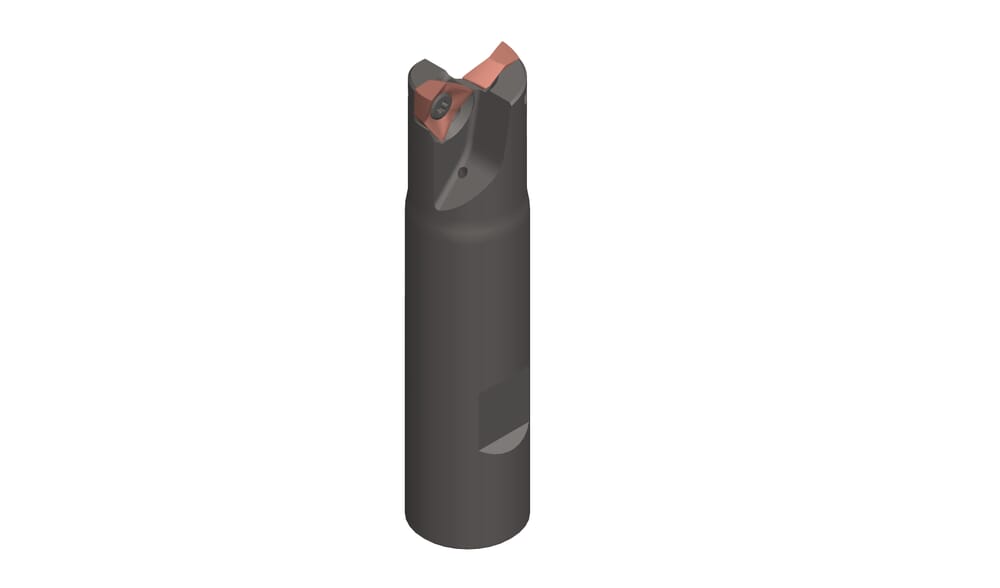

HORN Toolholder DAM32.020.D205.02B for Milling
Please note:Technical instructions
ISO_CCTWS
HORNDA3220$$3N$$$$$
Tension length (l3)
19
mm
Working length, Neck length, Extension length (l2)
22
mm
Total length insert (l1)
87
mm
Cone diameter (d)
20
mm
Neck diameter (d1)
19
mm
Cutting depth (ap)
4.8
mm
ISO_CCTMS
ZYL10G2000h$06
DIN_CCTMS
ZYL02001005
Katalog_CCTWS
DA3220
DIN_CCTWS
HORN-DA32203N
eclass-shortcut
21-18-08-90
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
20
mm
Shank diameter (d)
20
mm
| Downloads | |
|---|---|
| DAM32_020_D205_02B.STP | Download |
| DAM32020D20502B_20210629_121759112.DXF | Download |
| Download all files | |
