DAM32.020.M104.02B
Toolholder
Part number DAM32020M10402B

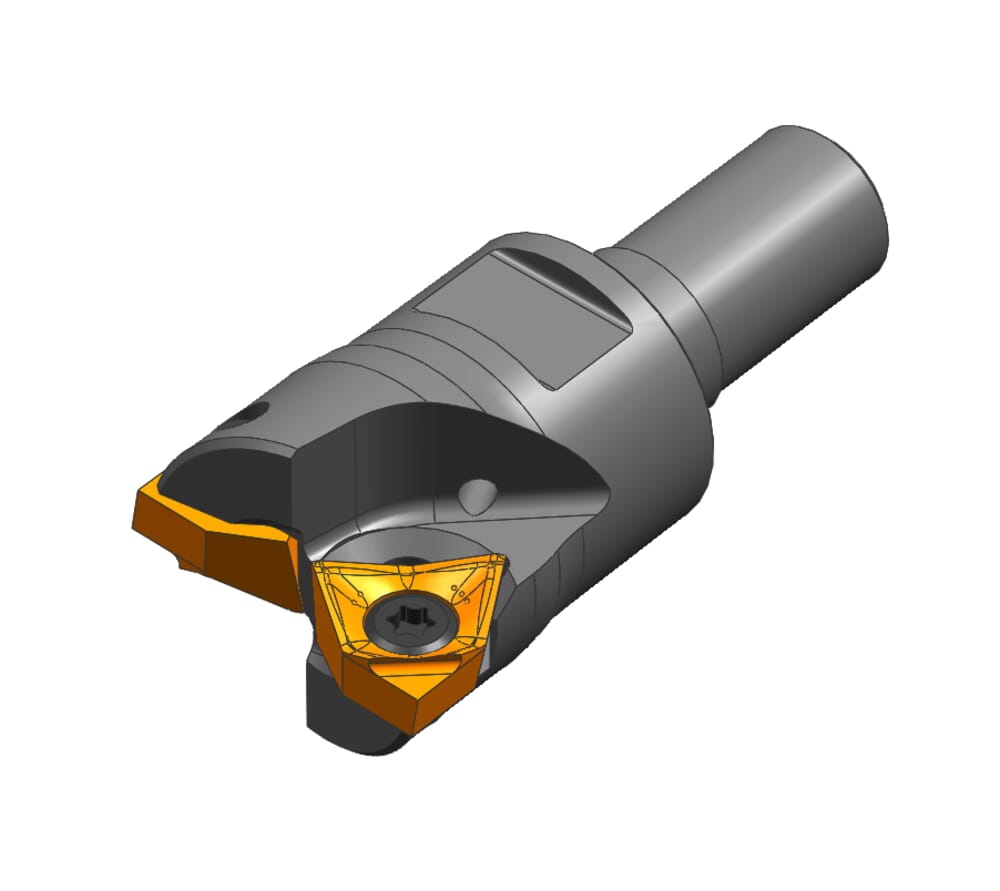

HORN Toolholder DAM32.020.M104.02B for Milling
Please note:Technical instructions
ISO_CCTWS
HORNDA3220$$3N$$$$$
Maximum stepover (ap) (ap)
4.8
mm
Key range (SW)
15
mm
Neck diameter on stop (d4)
18
mm
Length from stop (l2)
25
mm
Total milling length with insert (l1)
45
mm
Katalog_CCTMS
10001
ISO_CCTMS
HORN01000105$$
DIN_CCTMS
HORN-01000105
Katalog_CCTWS
DA3220
DIN_CCTWS
HORN-DA32203N
Diameter miller body (d1)
19
mm
eclass-shortcut
21-18-08-90
Number of teeth (Z)
2
St.
Cutting diameter (Ds)
20
mm
Screw thread (d2)
M10
