DAM32.025.D161.03A

Toolholder

Part number DAM32025D16103A

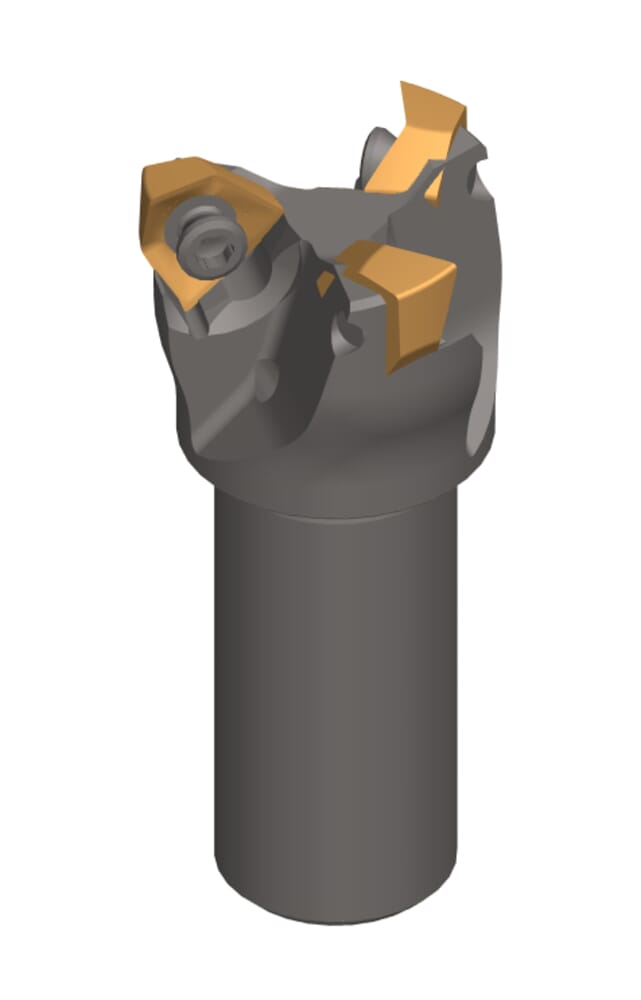

HORN Toolholder DAM32.025.D161.03A for Milling

ISO_CCTWS

HORNDA3225$$3N$$$$$

Tension length (l3)

35 mm

Working length, Neck length, Extension length (l2)

20 mm

Total length insert (l1)

55 mm

cone-diameter-met

24 mm

Neck diameter (d1)

16 mm

Cutting depth (ap)

4.5 mm

ISO_CCTMS

ZYL01G2500h$06

DIN_CCTMS

ZYL02500105

Katalog_CCTWS

DA3225

DIN_CCTWS

HORN-DA32253N

eclass-shortcut

21-18-08-90

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

25 mm

Shank diameter (d)

24 mm
