DAM32.025.D256.03B

Toolholder

Part number DAM32025D25603B

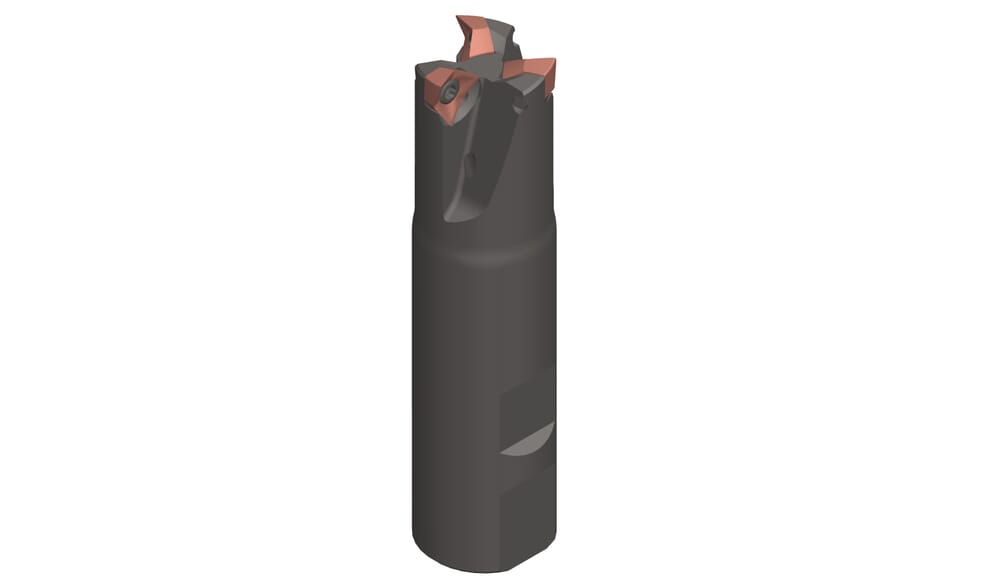

HORN Toolholder DAM32.025.D256.03B for Milling

ISO_CCTWS

HORNDA3225$$3N$$$$$

Tension length (l3)

64 mm

Working length, Neck length, Extension length (l2)

32 mm

Total length insert (l1)

102 mm

Cone diameter (d)

25 mm

Neck diameter (d1)

24 mm

Cutting depth (ap)

4.8 mm

ISO_CCTMS

ZYL10G2500h$06

DIN_CCTMS

ZYL02501005

Katalog_CCTWS

DA3225

DIN_CCTWS

HORN-DA32253N

eclass-shortcut

21-18-08-90

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

25 mm

Shank diameter (d)

25 mm
