DAM32.025.M125.03B
Toolholder
Part number DAM32025M12503B

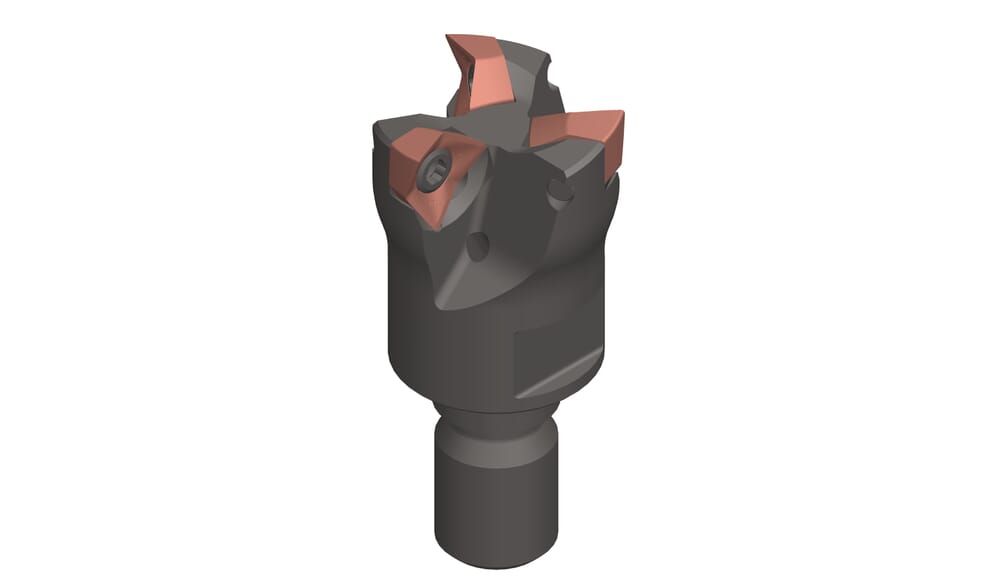

HORN Toolholder DAM32.025.M125.03B for Milling
Please note:Technical instructions
Total milling length with insert (l1)
52
mm
eclass-shortcut
21-18-08-90
Maximum stepover (ap) (ap)
4.8
mm
Key range (SW)
17
mm
Neck diameter on stop (d4)
21
mm
Length from stop (l2)
30
mm
Screw thread (d2)
M12
Katalog_CCTMS
12001
ISO_CCTMS
HORN01200105$$
DIN_CCTMS
HORN-01200105
Katalog_CCTWS
DA3225
DIN_CCTWS
HORN-DA32253N
ISO_CCTWS
HORNDA3225$$3N$$$$$
Diameter miller body (d1)
24
mm
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
25
mm
