DAM32.032.D162.03A

Toolholder

Part number DAM32032D16203A

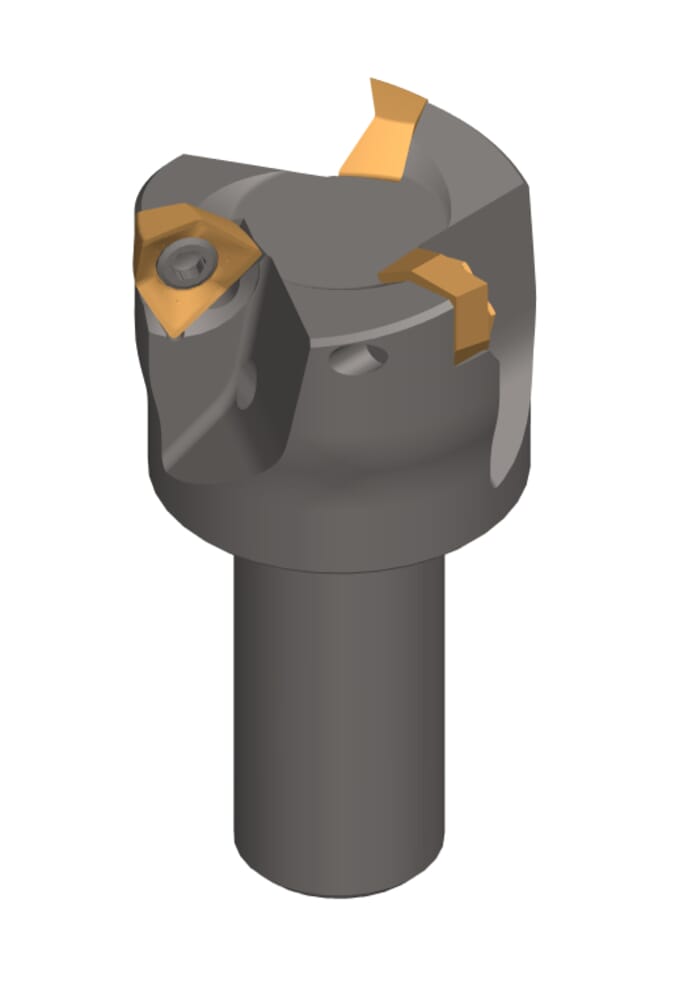

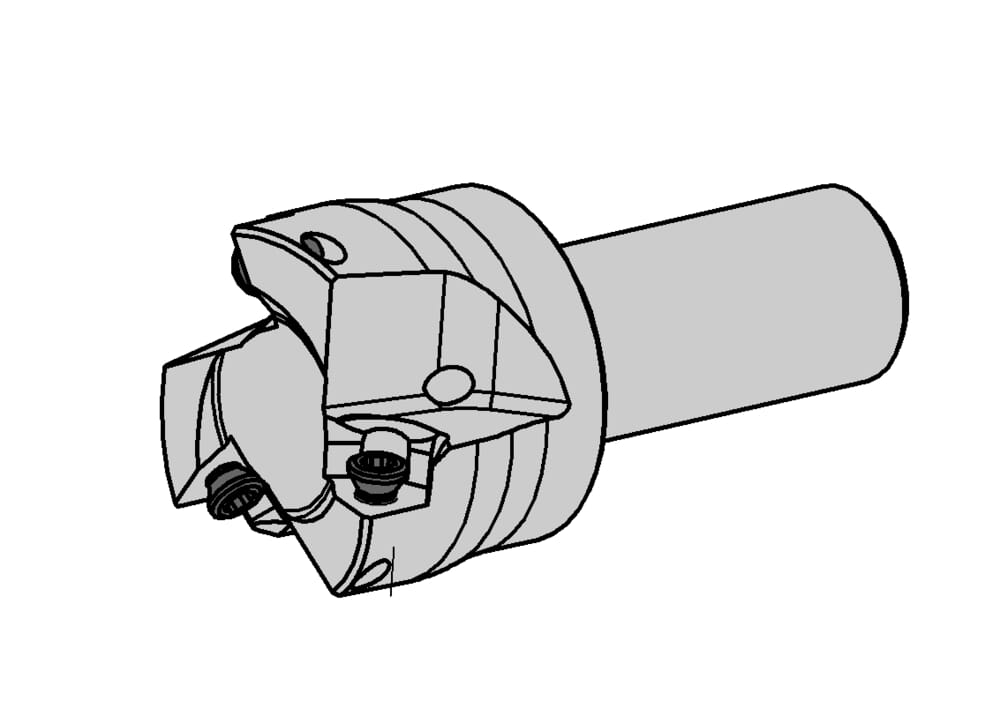

HORN Toolholder DAM32.032.D162.03A for Milling

ISO_CCTWS

HORNDA3232$$3N$$$$$

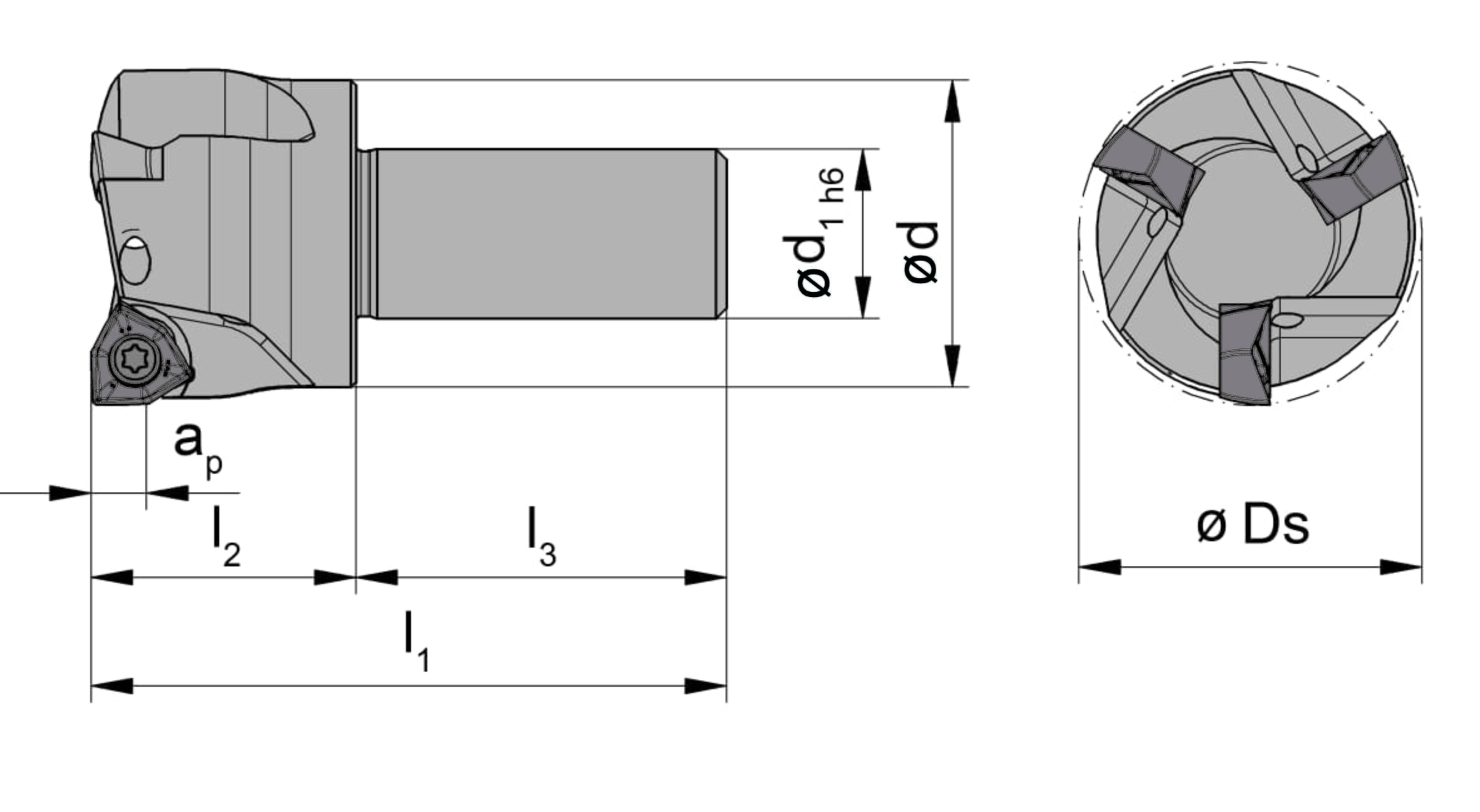

Tension length (l3)

35 mm

Working length, Neck length, Extension length (l2)

25 mm

Total length insert (l1)

60 mm

cone-diameter-met

31 mm

Neck diameter (d1)

16 mm

Cutting depth (ap)

4.5 mm

ISO_CCTMS

ZYL01G3200h$06

DIN_CCTMS

ZYL03200105

Katalog_CCTWS

DA3232

DIN_CCTWS

HORN-DA32323N

eclass-shortcut

21-18-08-90

Number of teeth (Z)

3 St.

Cutting diameter (Ds)

32 mm

Shank diameter (d)

31 mm
