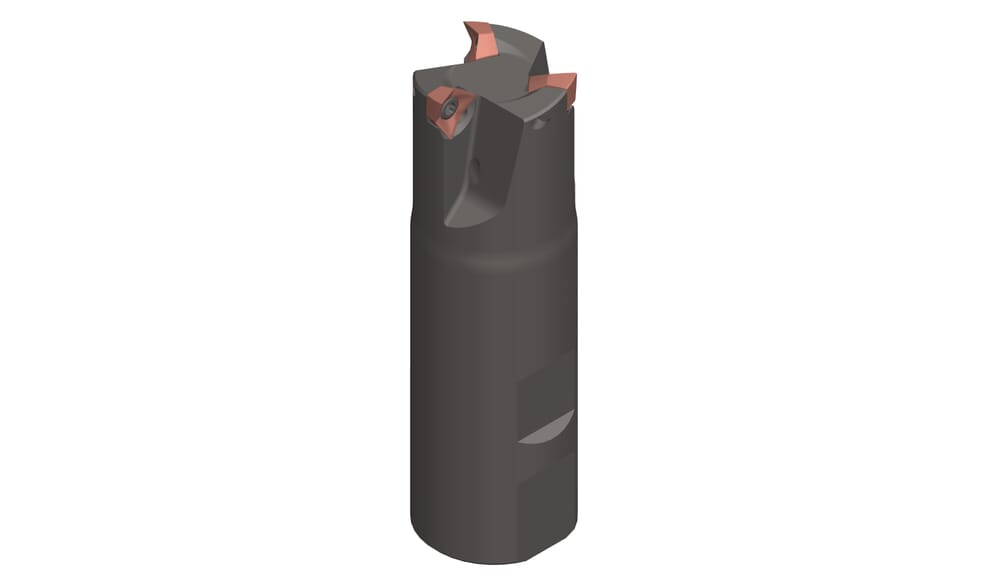

DAM32.032.D327.03B
Toolholder
Part number DAM32032D32703B
HORN Toolholder DAM32.032.D327.03B for Milling
Please note:Technical instructions
Neck diameter (d1)
31
mm
eclass-shortcut
21-18-08-90
Tension length (l3)
68
mm
Working length, Neck length, Extension length (l2)
32
mm
Total length insert (l1)
106
mm
Cone diameter (d)
32
mm
Shank diameter (d)
32
mm
Cutting depth (ap)
4.8
mm
ISO_CCTMS
ZYL10G3200h$06
DIN_CCTMS
ZYL03201005
Katalog_CCTWS
DA3232
DIN_CCTWS
HORN-DA32323N
ISO_CCTWS
HORNDA3232$$3N$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
32
mm
