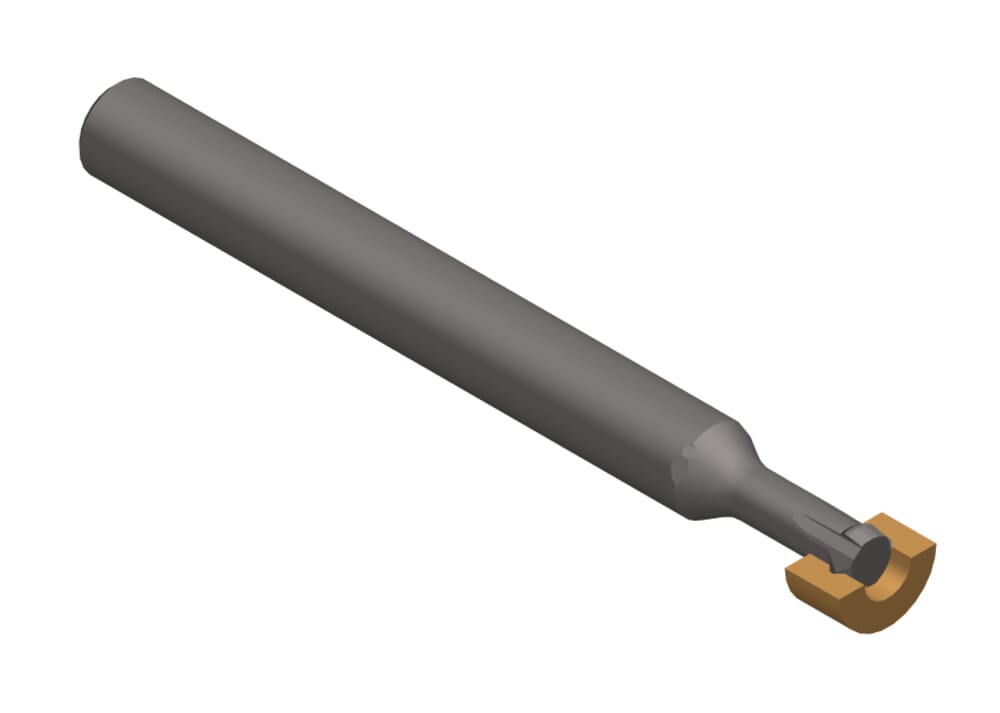

DCF.3.30.4545.2.04 MG12
Endmill
Part number DCF3304545204MG12
HORN Endmill DCF.3.30.4545.2.04 MG12 for Milling
Please note:Technical instructions
Chamfer (Fase)
45
°
Total length (l1)
39
mm
Maximum milling depth/ depth of groove (tmax)
0.3
mm
Neck diameter (d3)
2.1
mm
Width of groove (w)
0.2
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-01
Shank, clamping length (l4)
22
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
3
mm
Neck length (l3)
6
mm
Shank diameter (d2)
4
mm
| Downloads | |
|---|---|
| DCF3304545204_20230112_180040668.STP | Download |
| DCF3304545204_20210626_002307817.DXF | Download |
| Download all files | |
