DCF.3.60.4545.6.06 MG12
Endmill
Part number DCF3604545606MG12

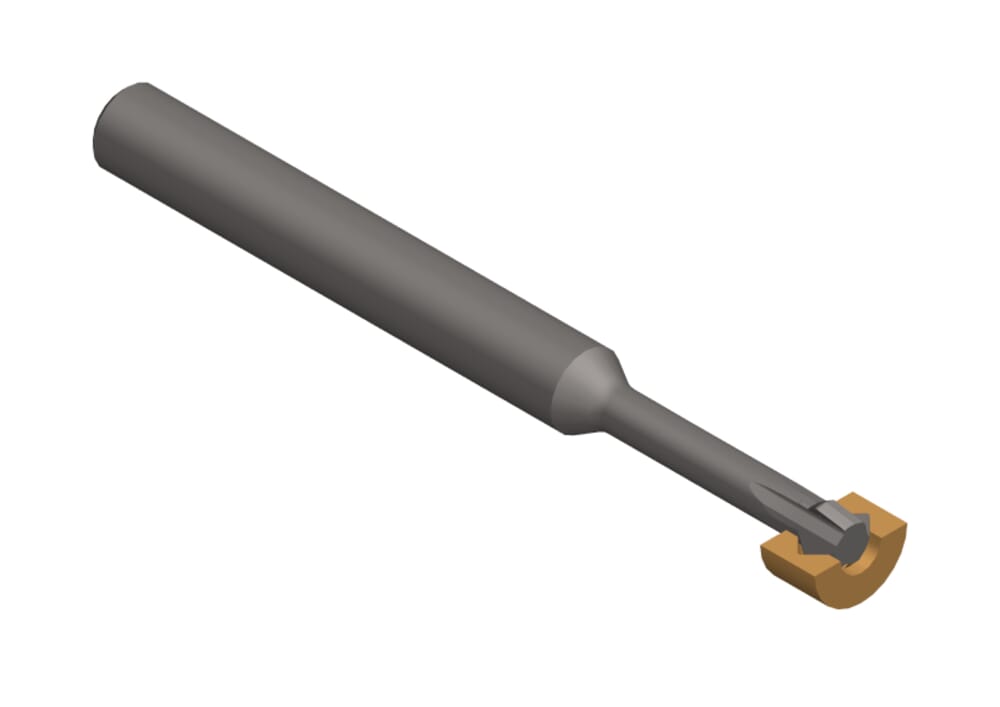

HORN Endmill DCF.3.60.4545.6.06 MG12 for Milling
Please note:Technical instructions
Chamfer (Fase)
45
°
Total length (l1)
63
mm
Maximum milling depth/ depth of groove (tmax)
1.25
mm
Neck diameter (d3)
3.15
mm
Width of groove (w)
0.2
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-01
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
6
mm
Neck length (l3)
20
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCF3604545606_20210630_111858795.STP | Download |
| DCF3604545606_20210625_213908446.DXF | Download |
| Download all files | |
