DCG.3.M3.050.2.1.04 AN25
Endmill
Part number DCG3M30502104AN25

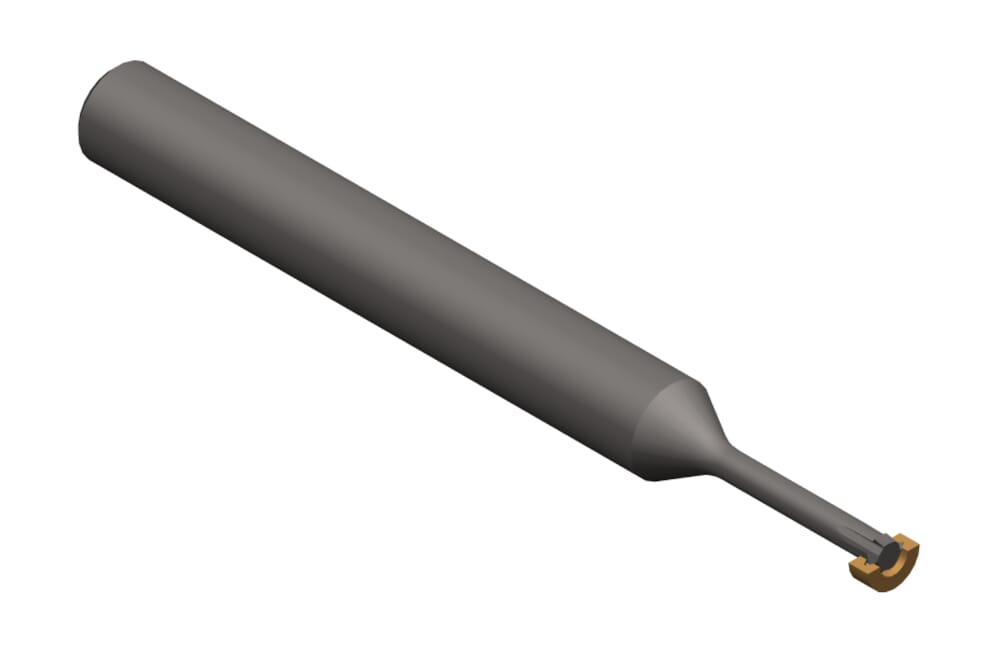

HORN Endmill DCG.3.M3.050.2.1.04 AN25 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-10
Maximum pitch (Pmax)
0.5
mm
Pitch (P)
0.5
mm
Smallest bore diameter (Dmin)
2.4
mm
Thread (Gewinde)
M3
Total length (l1)
39
mm
Neck diameter (d3)
1.2
mm
ISO_CCTMS
ZYL01F4000h$06
DIN_CCTMS
ZYL00400105
Shank, clamping length (l4)
22
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
2
mm
Neck length (l3)
8
mm
Shank diameter (d2)
4
mm
