DCG.3.M4.050.3.2.06 AN25
DC threadmill - Metric ISO - M4 full profile
Part number DCG3M40503206AN25

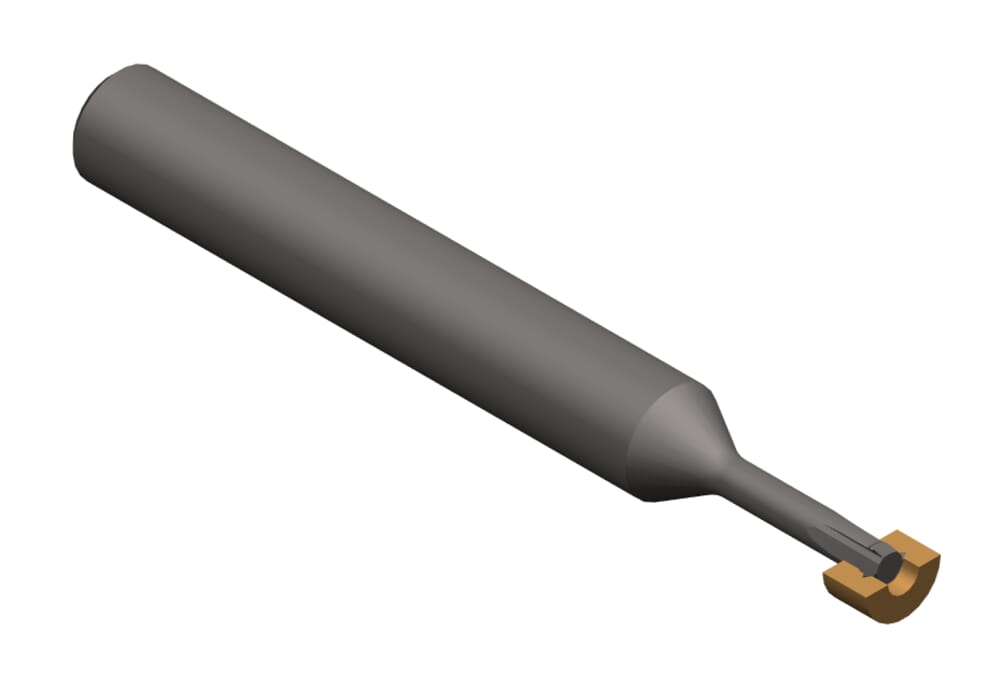

HORN DC threadmill - Metric ISO - M4 full profile DCG.3.M4.050.3.2.06 AN25 for Milling
Please note:Technical instructions
Pitch (P)
0.5
mm
Smallest bore diameter (Dmin)
3.3
mm
Thread (Gewinde)
M4
Total length (l1)
50
mm
Neck diameter (d3)
2.5
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
36
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
2.8
mm
Neck length (l3)
10
mm
Shank diameter (d2)
6
mm
