DCG.3.M4.070.3.2.06 AN25
Endmill
Part number DCG3M40703206AN25

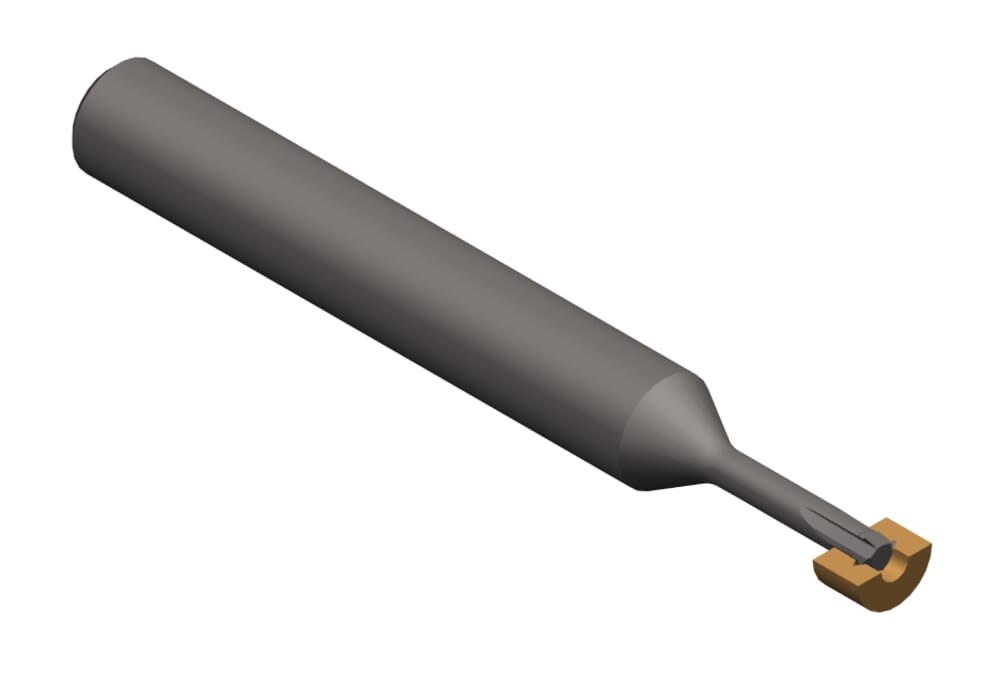

HORN Endmill DCG.3.M4.070.3.2.06 AN25 for Milling
Please note:Technical instructions
Pitch (P)
0.7
mm
Smallest bore diameter (Dmin)
3.3
mm
Thread (Gewinde)
M4
Total length (l1)
50
mm
Neck diameter (d3)
1.9
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
36
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
2.8
mm
Neck length (l3)
10
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCG3M40703206_20240116_233857706.STP | Download |
| DCG3M40703206_20210625_211555745.DXF | Download |
| Download all files | |
