DCG.4.55.G116.5.06 AN25

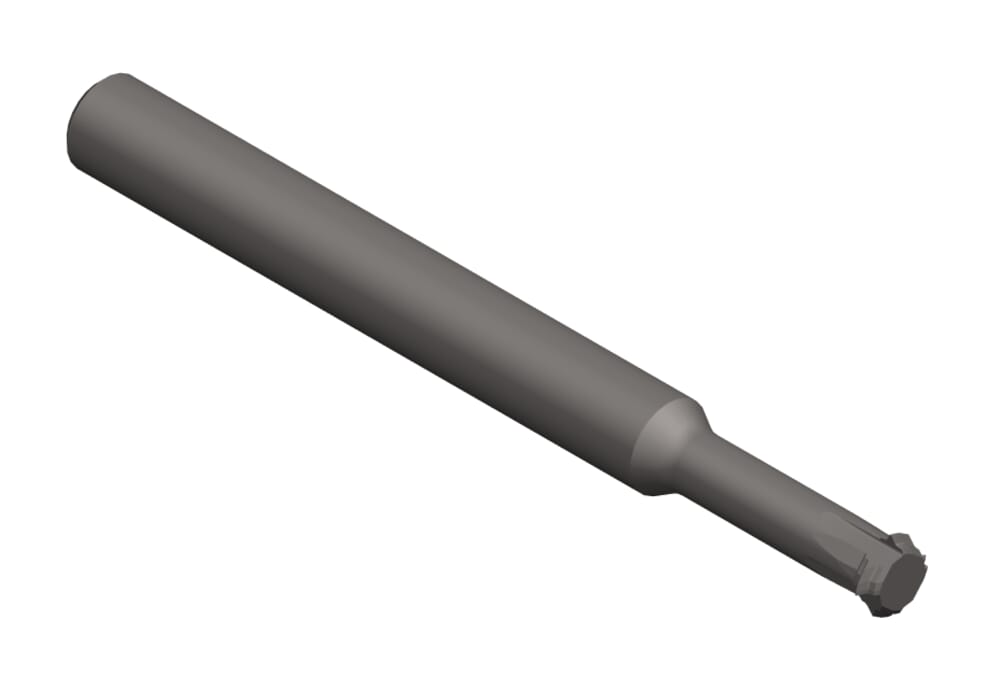

DC threadmill - Whitworth pipe - G 1/16"
Part number DCG455G116506AN25
HORN DC threadmill - Whitworth pipe - G 1/16" DCG.4.55.G116.5.06 AN25 for Milling
Please note:Technical instructions
Pitch (P)
0.91
mm
Smallest bore diameter (Dmin)
6.5
mm
Thread (Gewinde)
G 1/16''
Total length (l1)
63
mm
Neck diameter (d3)
3.9
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
5.5
mm
Neck length (l3)
16
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCG455G116506_20230112_181128211.STP | Download |
| DCG455G116506_20210626_155141923.DXF | Download |
| Download all files | |
