DCG.4.55.G18.5.08 AN25
Endmill
Part number DCG455G18508AN25

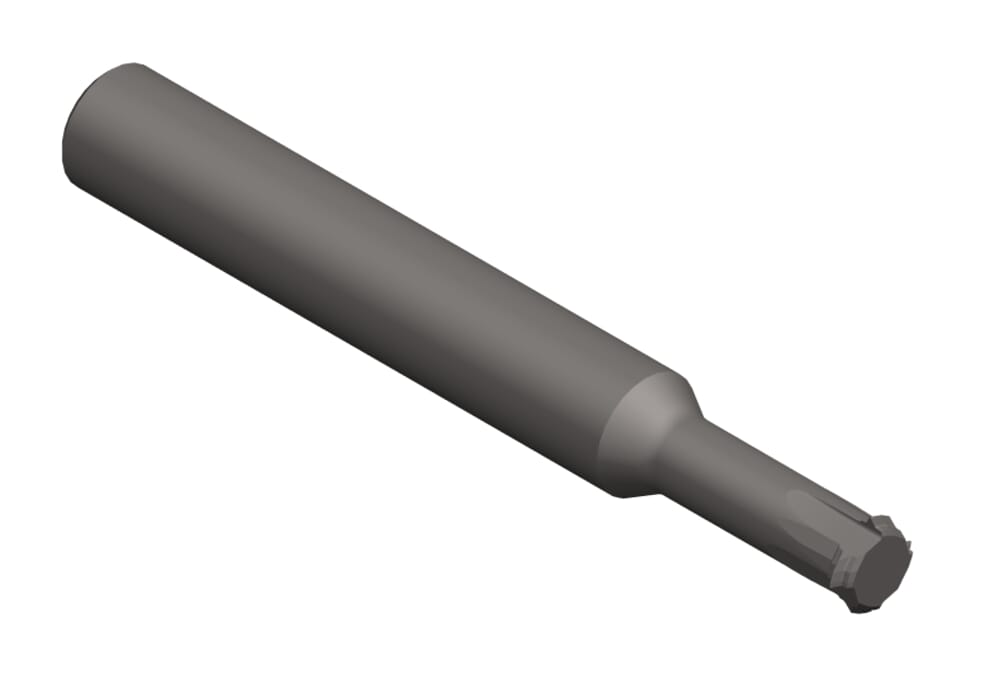

HORN Endmill DCG.4.55.G18.5.08 AN25 for Milling
Please note:Technical instructions
Pitch (P)
0.91
mm
Smallest bore diameter (Dmin)
8.5
mm
Thread (Gewinde)
G 1/8''
Total length (l1)
63
mm
Neck diameter (d3)
5
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
6.6
mm
Neck length (l3)
16
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DCG455G18508_20230112_175101406.STP | Download |
| DCG455G18508_20210626_155039421.DXF | Download |
| Download all files | |
