DCG.4.60.1428.3.06 AN25
Endmill
Part number DCG4601428306AN25

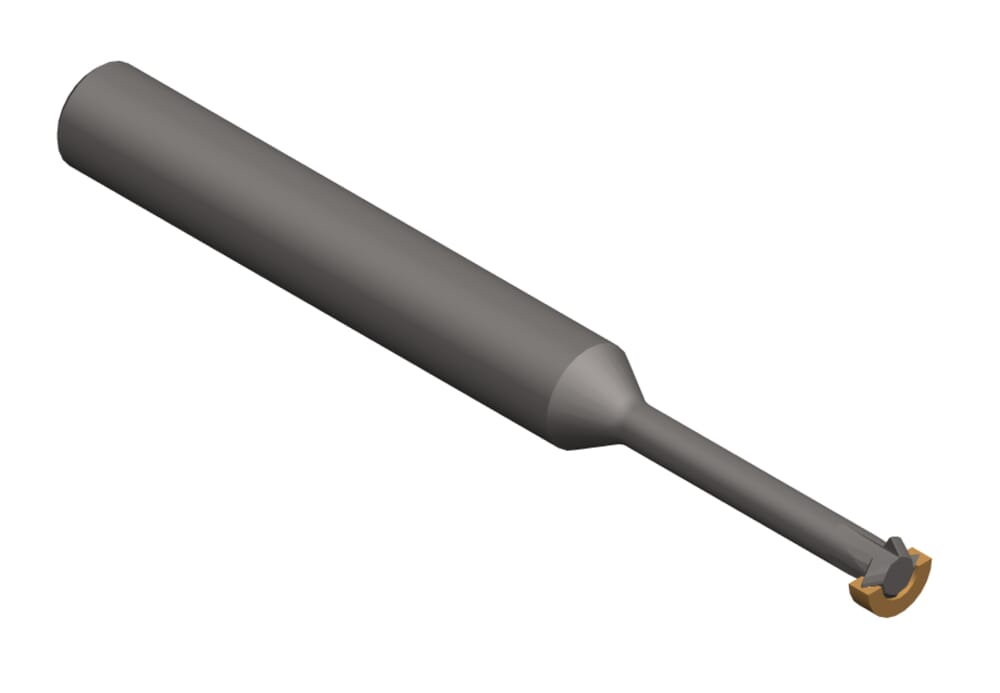

HORN Endmill DCG.4.60.1428.3.06 AN25 for Milling
Please note:Technical instructions
Pitch (P)
0.907
mm
Smallest bore diameter (Dmin)
5.3
mm
Thread (Gewinde)
1/4'' - 28 UNF
Total length (l1)
63
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
3.5
mm
Neck length (l3)
10
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCG_4_60_1428_3_06.STP | Download |
| DCG4601428306_20210626_155255350.DXF | Download |
| Download all files | |
