DCG.4.60.71614.7.08 AN25
Endmill
Part number DCG46071614708AN25

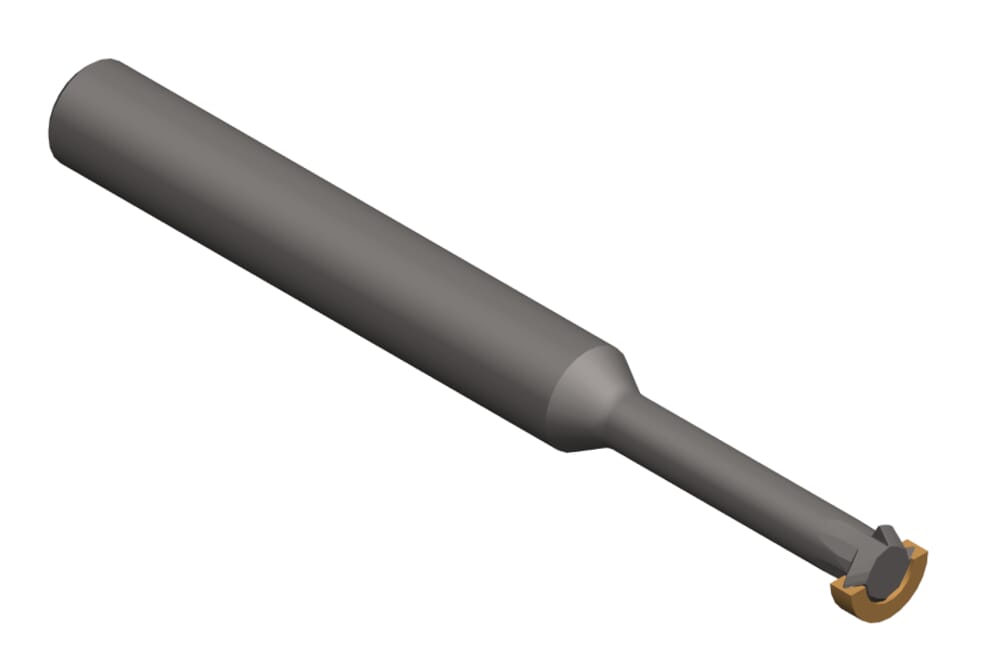

HORN Endmill DCG.4.60.71614.7.08 AN25 for Milling
Please note:Technical instructions
Pitch (P)
1.814
mm
Smallest bore diameter (Dmin)
9.1
mm
Thread (Gewinde)
7/16'' - 14 UNC
Total length (l1)
77
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
6.8
mm
Neck length (l3)
25
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DCG46071614708_20240116_233705921.STP | Download |
| DCG46071614708_20210625_215913593.DXF | Download |
| Download all files | |
