DCG.4.60.71620.7.08 MG12
Endmill
Part number DCG46071620708MG12

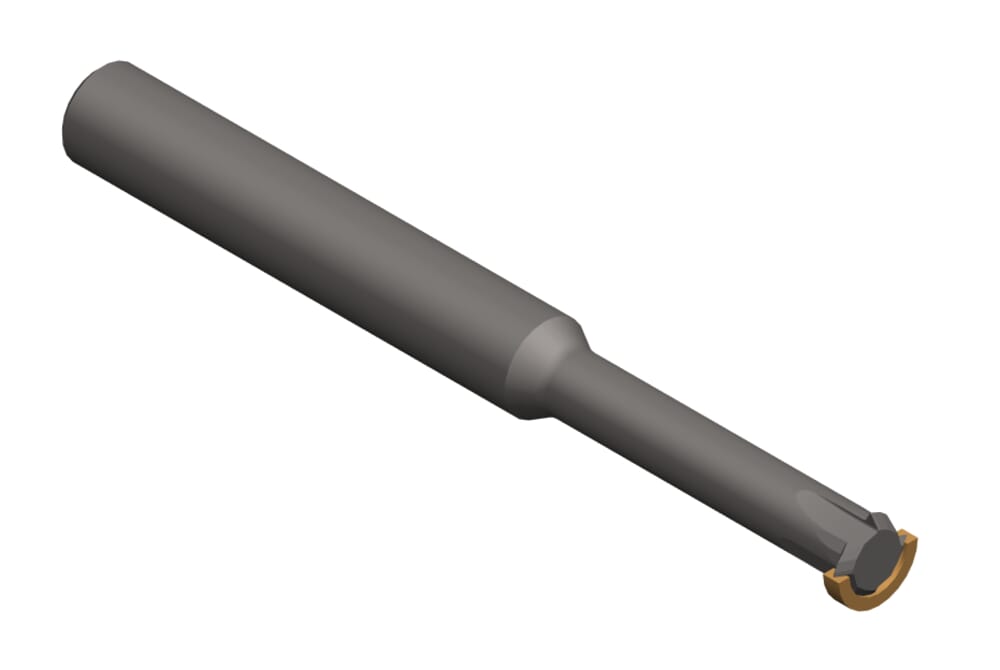

HORN Endmill DCG.4.60.71620.7.08 MG12 for Milling
Please note:Technical instructions
Pitch (P)
1.27
mm
Smallest bore diameter (Dmin)
9.1
mm
Thread (Gewinde)
7/16'' - 20 UNF
Total length (l1)
77
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-10
Shank, clamping length (l4)
40
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
7.2
mm
Neck length (l3)
30
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DCG_4_60_71620_7_08_20171121_191128830.STP | Download |
| DCG46071620708_20210625_155903727.DXF | Download |
| Download all files | |
