DCG.4.M10.100.7.2.08 MG12

Endmill

Part number DCG4M101007208MG12

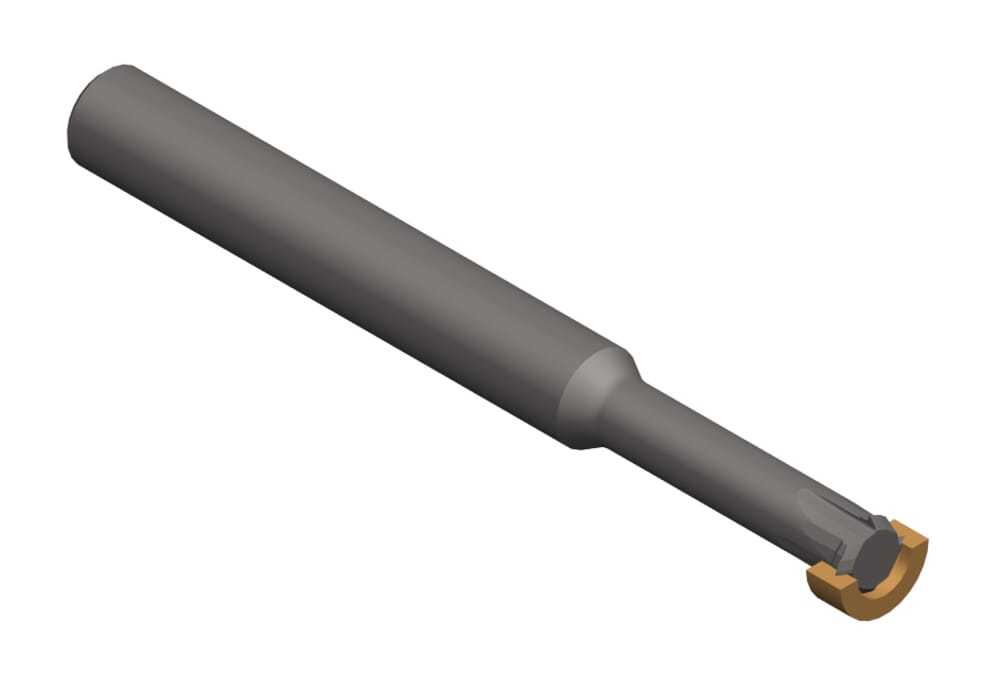

HORN Endmill DCG.4.M10.100.7.2.08 MG12 for Milling

Pitch (P)

1 mm

Smallest bore diameter (Dmin)

8 mm

Thread (Gewinde)

M10

Total length (l1)

77 mm

Neck diameter (d3)

5.4 mm

ISO_CCTMS

ZYL01G1600h$06

DIN_CCTMS

ZYL01600115

eclass-shortcut

21-18-06-10

Shank, clamping length (l4)

40 mm

Number of teeth (Z)

4 St.

Cutting diameter (d1)

6.8 mm

Neck length (l3)

25 mm

Shank diameter (d2)

8 mm
