DCG.4.M10.150.6.1.08 AN25

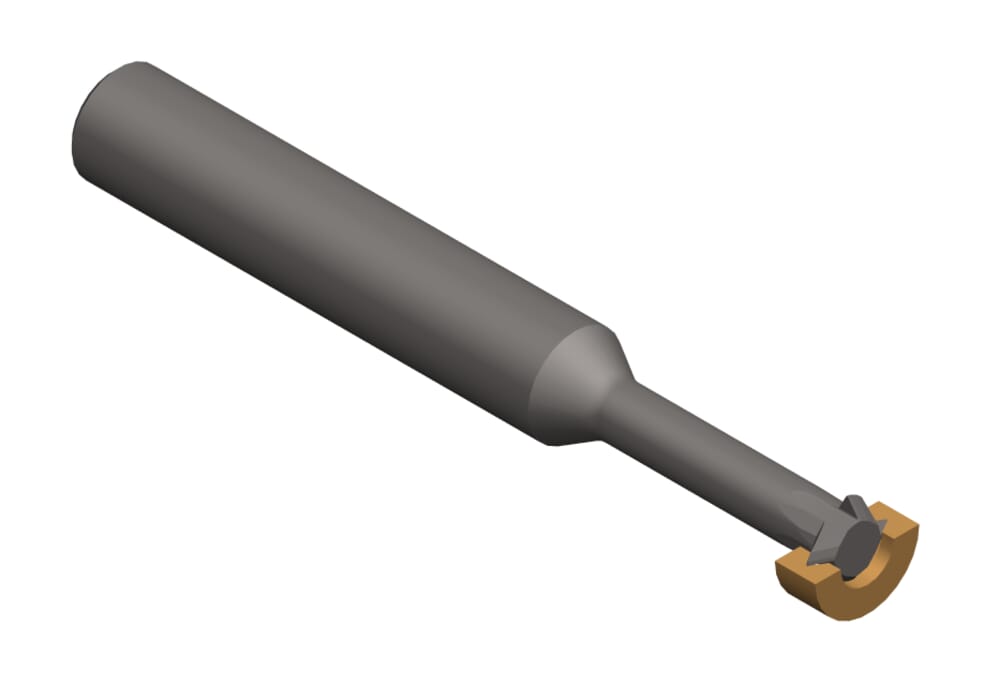

DC threadmill - Metric ISO - M10-M12 partial profile

Part number DCG4M101506108AN25

HORN DC threadmill - Metric ISO - M10-M12 partial profile DCG.4.M10.150.6.1.08 AN25 for Milling

eclass-shortcut

21-18-06-10

Maximum pitch (Pmax)

1.75 mm

Pitch (P)

1.5 mm

Smallest bore diameter (Dmin)

8 mm

Thread (Gewinde)

M10-M12

Total length (l1)

63 mm

Neck diameter (d3)

4.1 mm

ISO_CCTMS

ZYL01F8000h$06

DIN_CCTMS

ZYL00800105

Shank, clamping length (l4)

36 mm

Number of teeth (Z)

4 St.

Cutting diameter (d1)

6.8 mm

Neck length (l3)

20 mm

Shank diameter (d2)

8 mm
