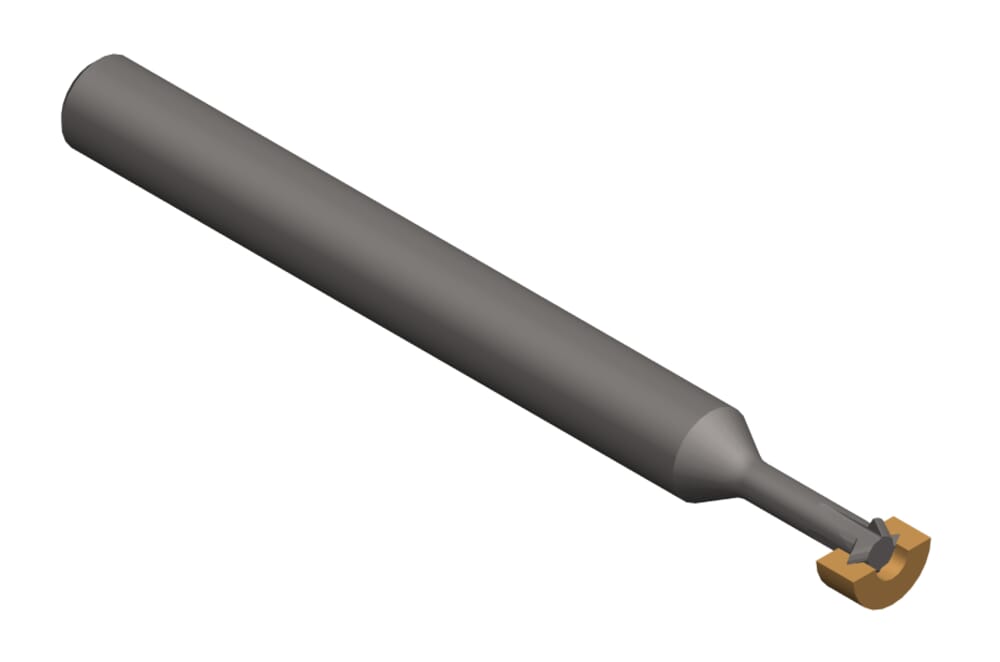

DCG.4.M6.100.3.1.06 AN25

DC threadmill - Metric ISO - M6 partial profile

Part number DCG4M61003106AN25

HORN DC threadmill - Metric ISO - M6 partial profile DCG.4.M6.100.3.1.06 AN25 for Milling

eclass-shortcut

21-18-06-10

Maximum pitch (Pmax)

1.25 mm

Pitch (P)

1 mm

Smallest bore diameter (Dmin)

5 mm

Thread (Gewinde)

Total length (l1)

63 mm

Neck diameter (d3)

2.4 mm

ISO_CCTMS

ZYL01F6000h$06

DIN_CCTMS

ZYL00600105

Shank, clamping length (l4)

40 mm

Number of teeth (Z)

4 St.

Cutting diameter (d1)

4.3 mm

Neck length (l3)

10 mm

Shank diameter (d2)

6 mm
