DCG.4.M8.075.5.2.08 AN25

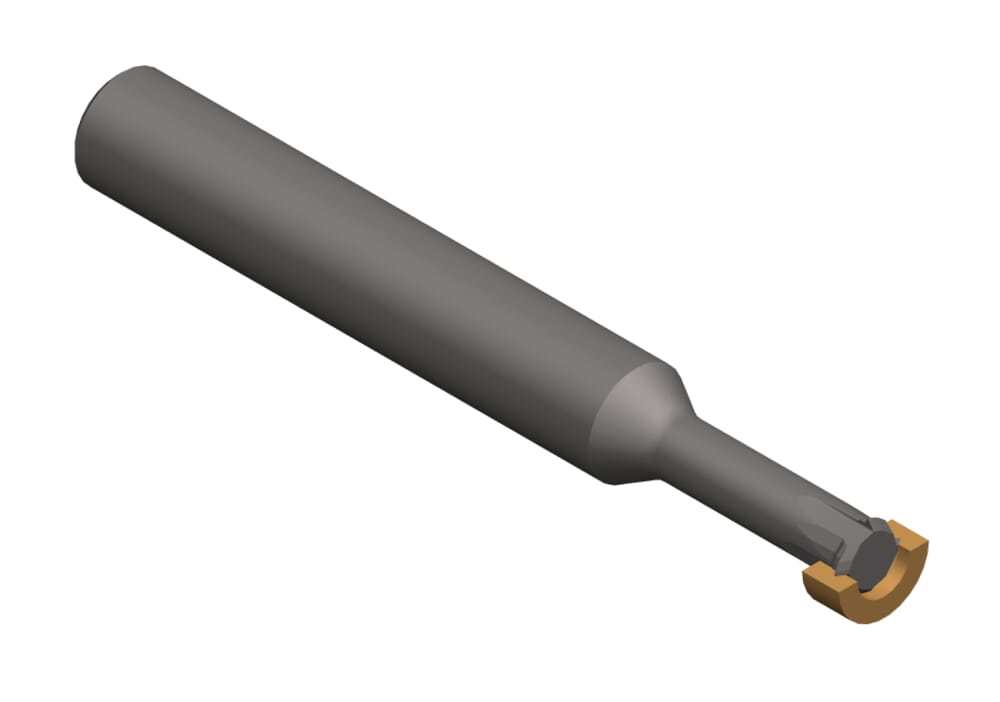

DC threadmill - Metric ISO - M8 full profile

Part number DCG4M80755208AN25

HORN DC threadmill - Metric ISO - M8 full profile DCG.4.M8.075.5.2.08 AN25 for Milling

Pitch (P)

0.75 mm

Smallest bore diameter (Dmin)

6.5 mm

Thread (Gewinde)

Total length (l1)

63 mm

Neck diameter (d3)

4.3 mm

ISO_CCTMS

ZYL01F8000h$06

DIN_CCTMS

ZYL00800105

eclass-shortcut

21-18-06-10

Shank, clamping length (l4)

40 mm

Number of teeth (Z)

4 St.

Cutting diameter (d1)

5.5 mm

Neck length (l3)

16 mm

Shank diameter (d2)

8 mm
