DCGT11T304R.W.HS HD08
Insert
Part number DCGT11T304RWHSHD08

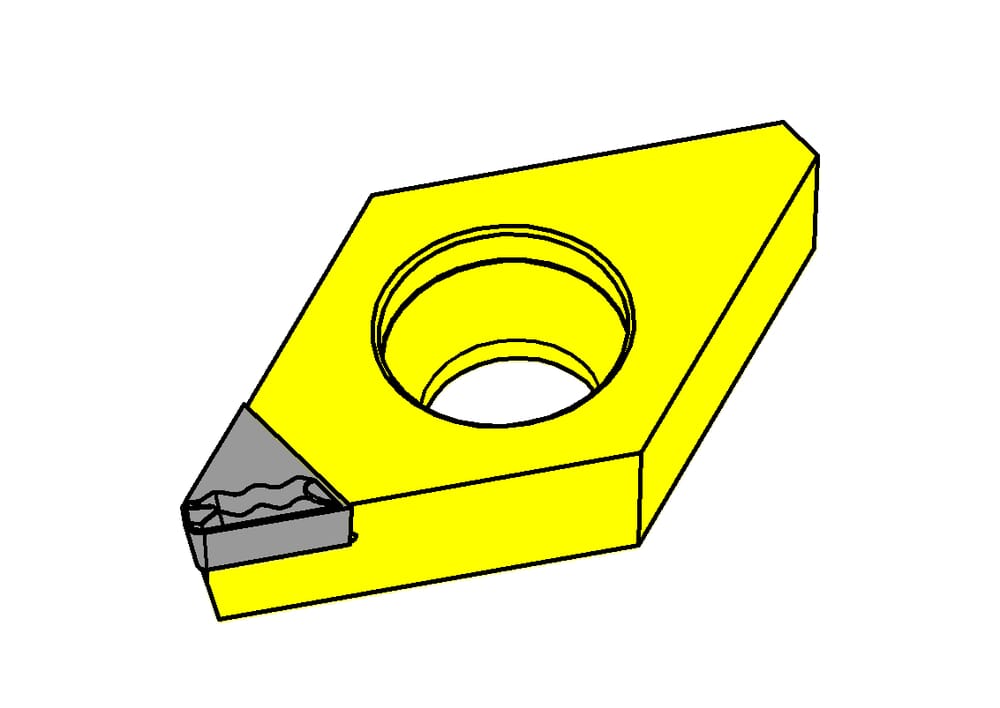

HORN Insert DCGT11T304R.W.HS HD08 for Turning
Please note:Technical instructions

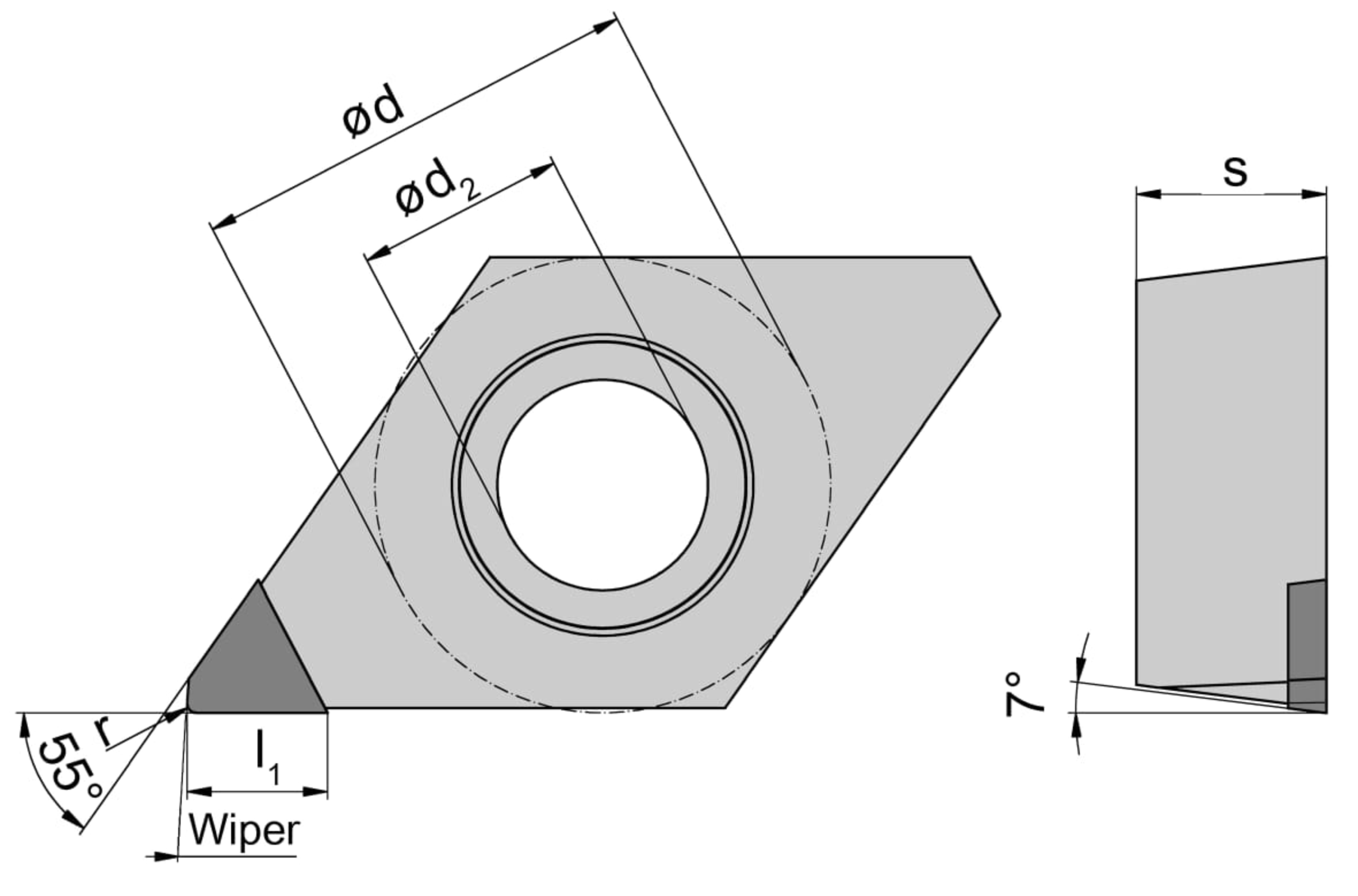

Bore diameter (d1)
4.4
mm
eclass-shortcut
21-18-20-11
ISO_SSC
ISO$DC11T3043RB$$04
DIN_SSC
DC11T3043R
Corner radius (r)
0.4
mm
Cutting insert height, Cutting insert thickness (s)
3.97
mm
Effective cutting length (l1)
2.5
mm
Inner circle diameter (d)
9.525
mm
| Downloads | |
|---|---|
| DCGT11T304.STP | Download |
| Download all files | |
