DCLNR2525M1204-1A
Toolholder
Part number DCLNR2525M1204-1A

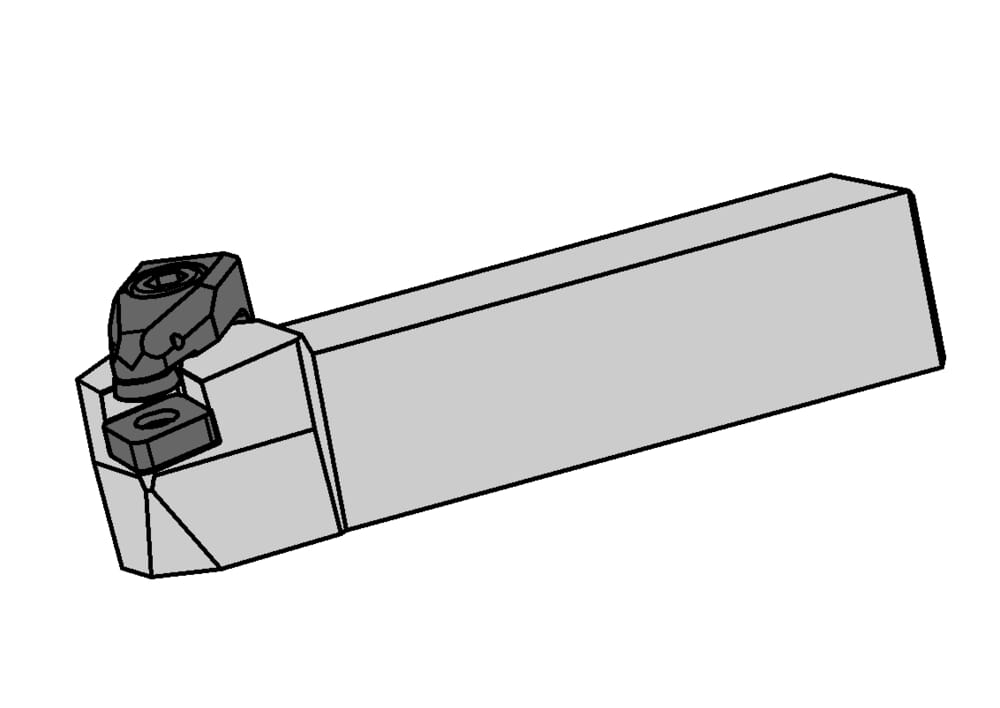

HORN Toolholder DCLNR2525M1204-1A for Turning
Please note:Technical instructions

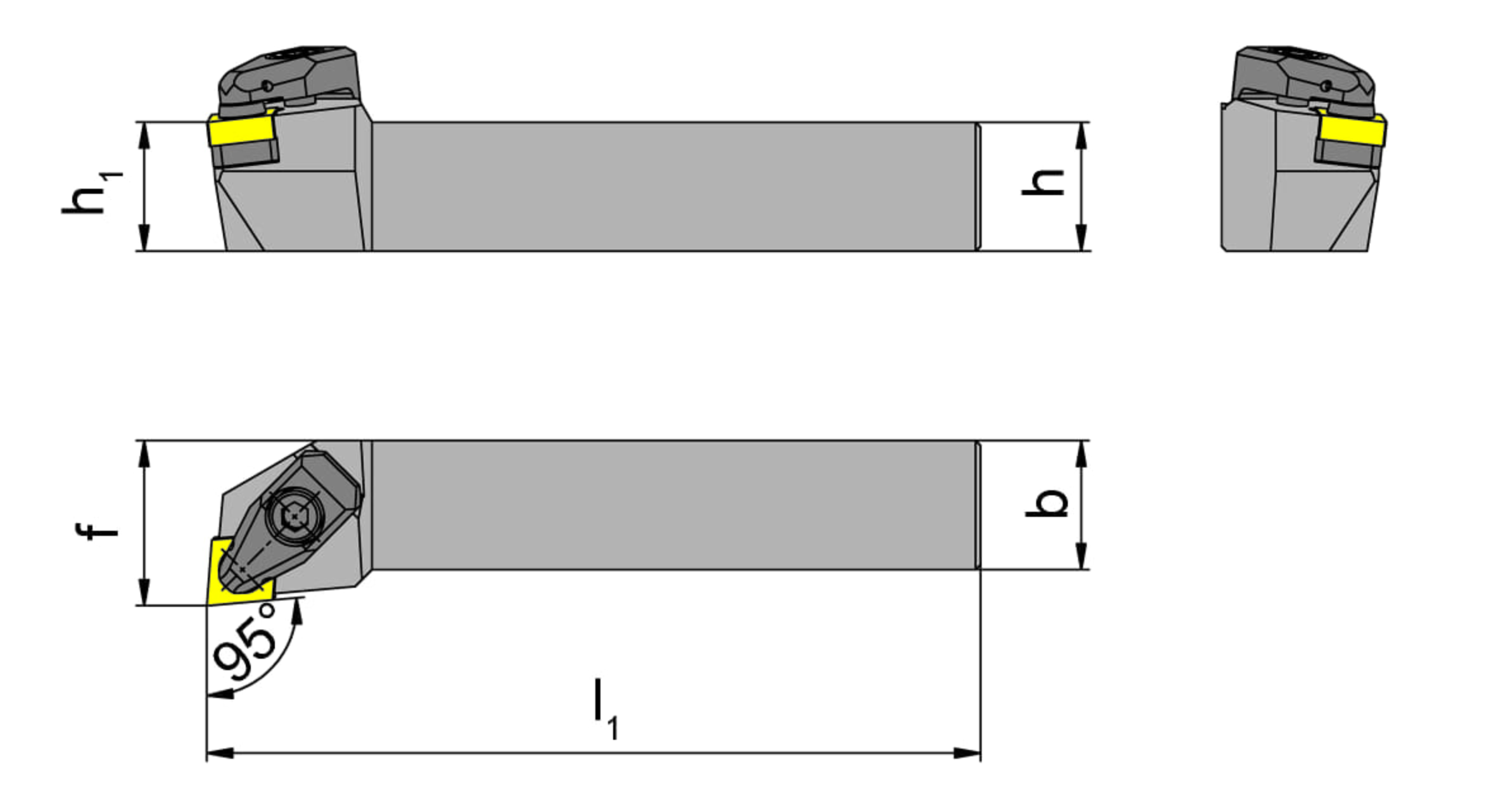

Shank width (b)
25
mm
Adjustment dimension (f)
32
mm
Total length (including cutting insert) (l1)
150
mm
Shank height (h)
25
mm
Peak height (h1)
25
mm
Type (Ausführung)
right hand
| Downloads | |
|---|---|
| DCLNR2525M1204-1A_20230112_233148154.STP | Download |
| Download all files | |
