DCN.3.60.15.15.2.06 MG12
Endmill
Part number DCN3601515206MG12

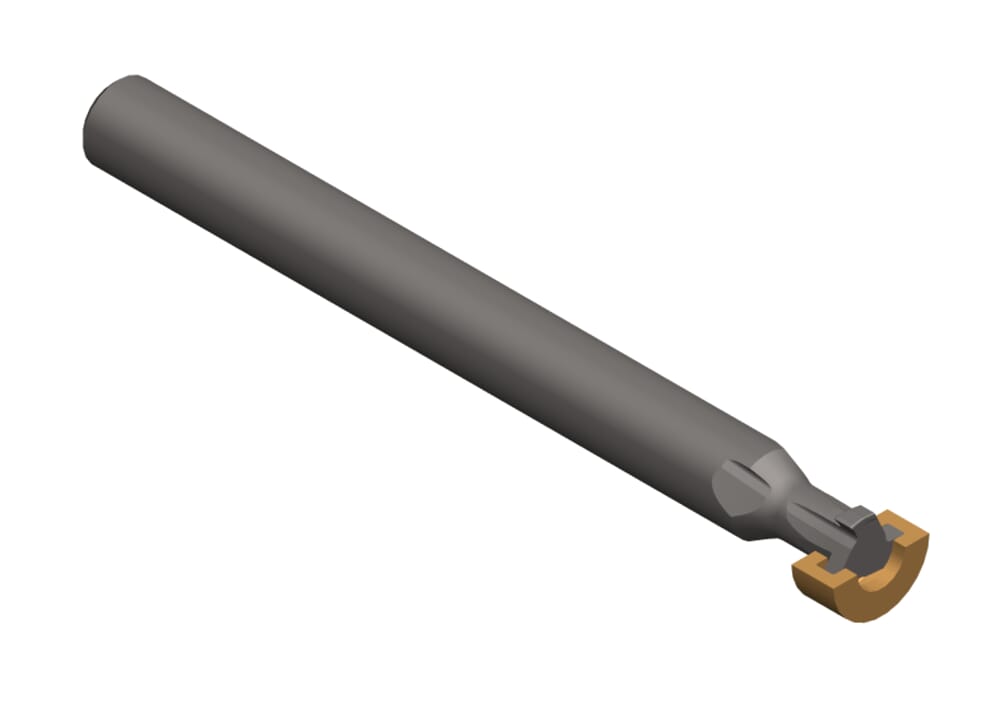

HORN Endmill DCN.3.60.15.15.2.06 MG12 for Milling
Please note:Technical instructions
Shank, clamping length (l4)
40
mm
Total length (l1)
63
mm
Corner radius (r)
0.15
mm
Maximum milling depth/ depth of groove (tmax)
1
mm
Neck diameter (d3)
3.7
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-01
Width of groove (w)
1.5
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
6
mm
Neck length (l3)
6
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCN3601515206_20230112_225639597.STP | Download |
| DCN3601515206_20210706_173909940.DXF | Download |
| Download all files | |
