DCR.3.60.10.05.1.06 MG12
Endmill
Part number DCR3601005106MG12

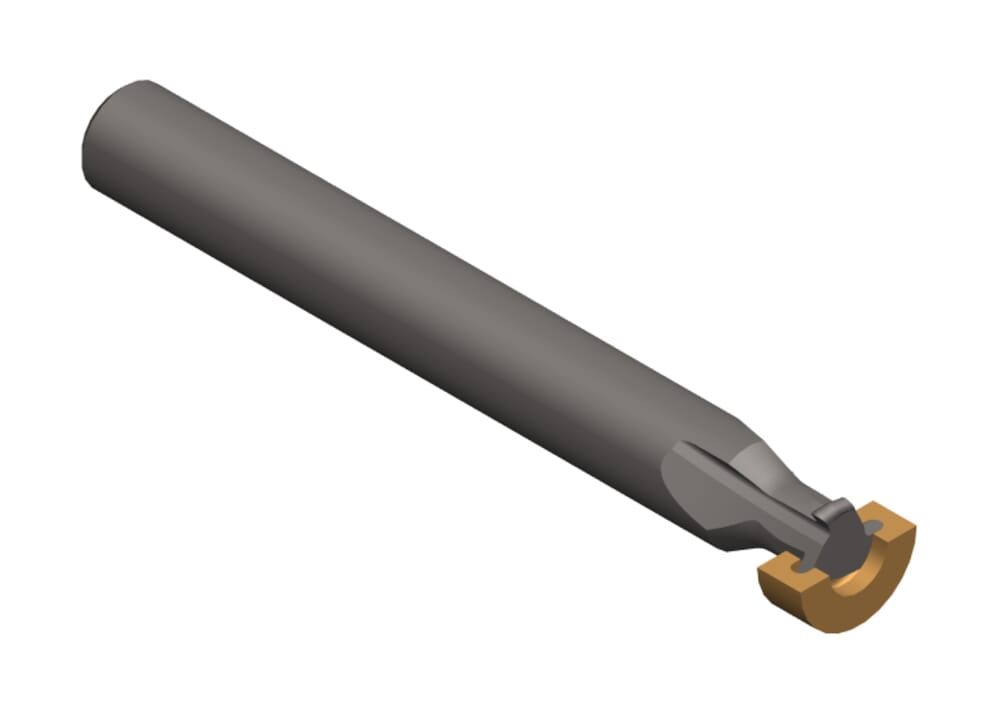

HORN Endmill DCR.3.60.10.05.1.06 MG12 for Milling
Please note:Technical instructions
Neck diameter (d3)
3.7
mm
eclass-shortcut
21-18-06-01
Total length (l1)
50
mm
Radius, full-radius (r)
0.5
mm
Maximum milling depth/ depth of groove (tmax)
1
mm
Shank diameter (d2)
6
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
Shank, clamping length (l4)
36
mm
Width of groove (w)
1
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
6
mm
Neck length (l3)
4
mm
| Downloads | |
|---|---|
| DCR3601005106_20240118_131313056.STP | Download |
| DCR3601005106_20210625_222236826.DXF | Download |
| Download all files | |
