DCR.3.60.15.75.2.06 AN25
Endmill
Part number DCR3601575206AN25

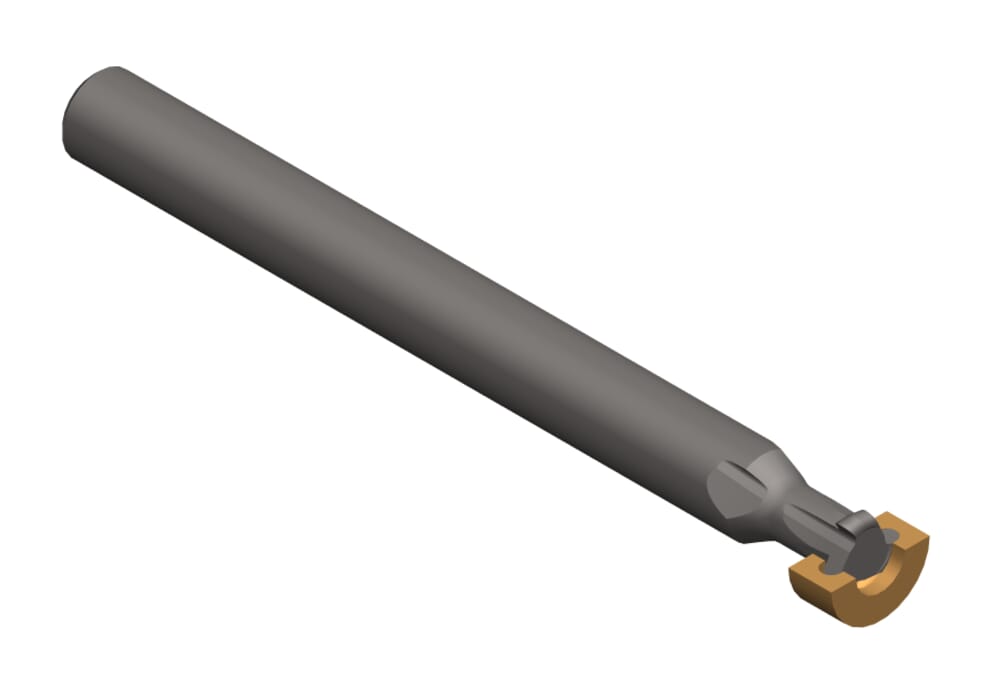

HORN Endmill DCR.3.60.15.75.2.06 AN25 for Milling
Please note:Technical instructions
Shank, clamping length (l4)
40
mm
Total length (l1)
63
mm
Radius, full-radius (r)
0.75
mm
Maximum milling depth/ depth of groove (tmax)
1
mm
Neck diameter (d3)
3.7
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-01
Width of groove (w)
1.5
mm
Number of teeth (Z)
3
St.
Cutting diameter (d1)
6
mm
Neck length (l3)
6
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DCR3601575206_20230112_175906235.STP | Download |
| DCR3601575206_20210625_222355265.DXF | Download |
| Download all files | |
