DCR.4.80.20.10.5.08 MG12
Endmill
Part number DCR4802010508MG12

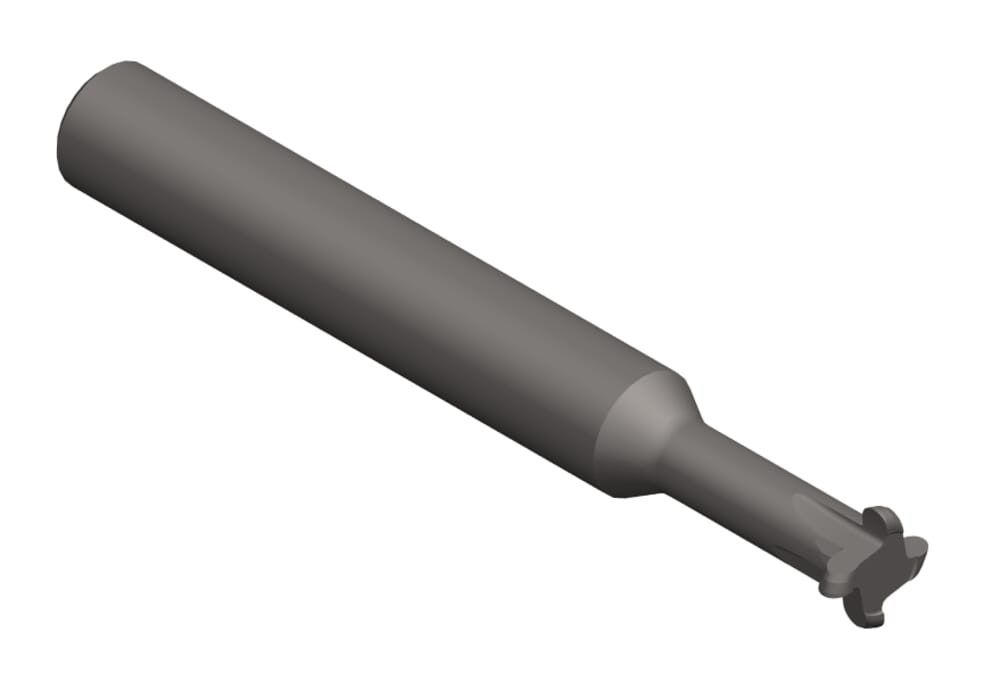

HORN Endmill DCR.4.80.20.10.5.08 MG12 for Milling
Please note:Technical instructions
Shank, clamping length (l4)
40
mm
Total length (l1)
63
mm
Radius, full-radius (r)
1
mm
Maximum milling depth/ depth of groove (tmax)
1.5
mm
Neck diameter (d3)
4.6
mm
ISO_CCTMS
ZYL01G1600h$06
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-06-01
Width of groove (w)
2
mm
Number of teeth (Z)
4
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
16
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DCR4802010508_20240118_131132192.STP | Download |
| DCR_4_80_20_10_5_08.DXF | Download |
| Download all files | |
