DG12.H12.22.4.11.3P RC4P

Milling system DG12

Part number DG12H12224113PRC4P

HORN Milling system DG12 DG12.H12.22.4.11.3P RC4P for Milling

DIN_SSC

HORN-DG01220N

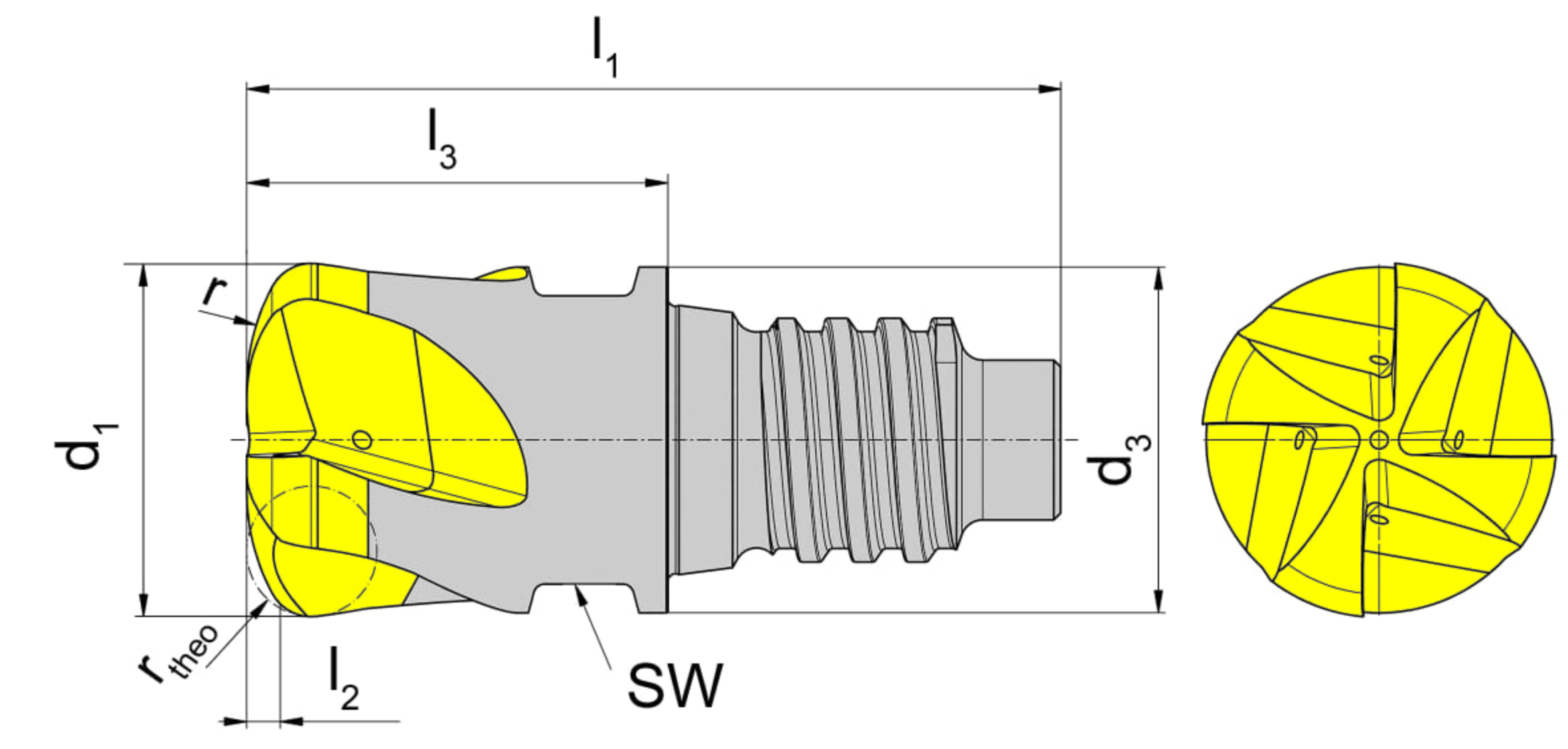

Theoretical corner radius, programmable corner radius (rtheo)

2.21 mm

Total length (l1)

28.3 mm

Spur radius (r)

7.2 cm

Tool length from stop, flange (l3)

14 mm

Effective cutting length (l2)

1.1 mm

Key range (SW)

10 mm

Neck diameter (d3)

11.7 mm

Katalog_SSC

DG0122

ISO_SSC

HORNDG01229$0N$$$$$

System (System)

DG12

Number of teeth (Z)

4 St.

Cutting diameter (d1)

12 mm
